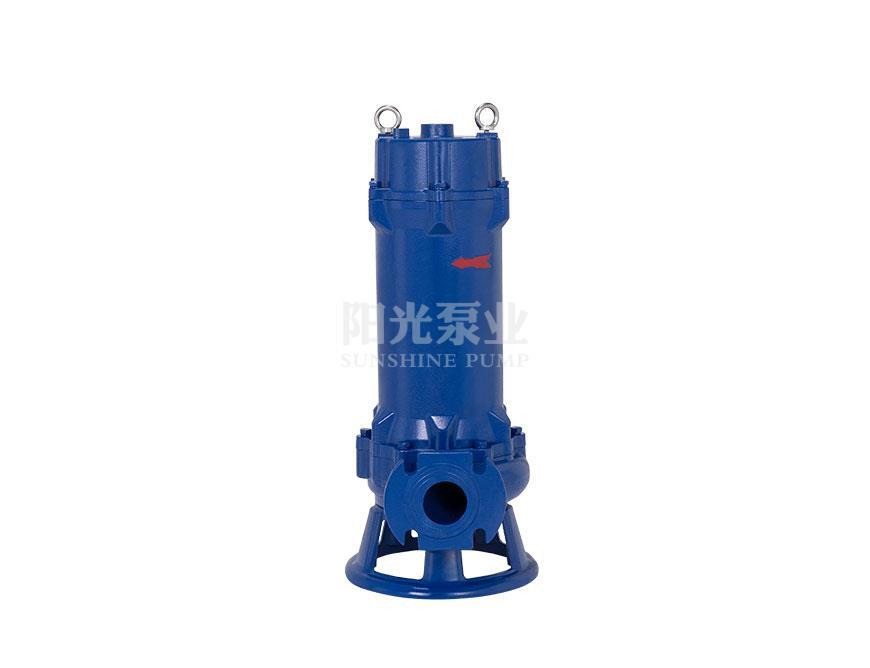

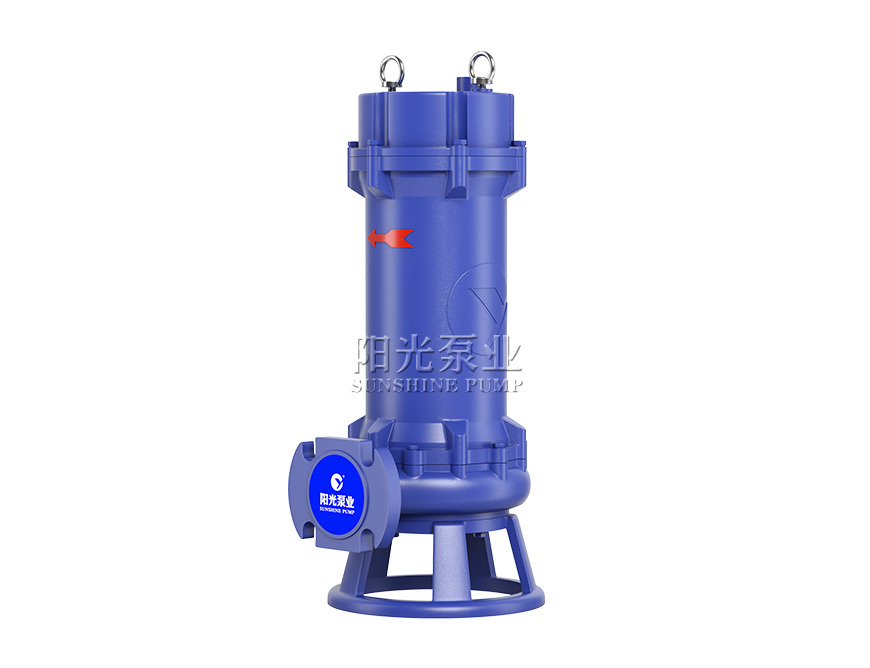

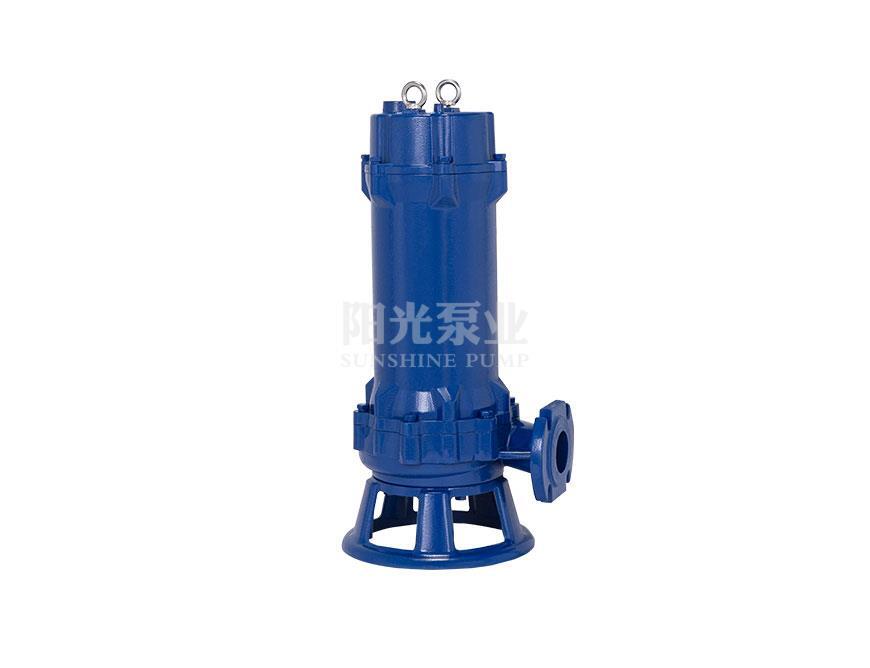

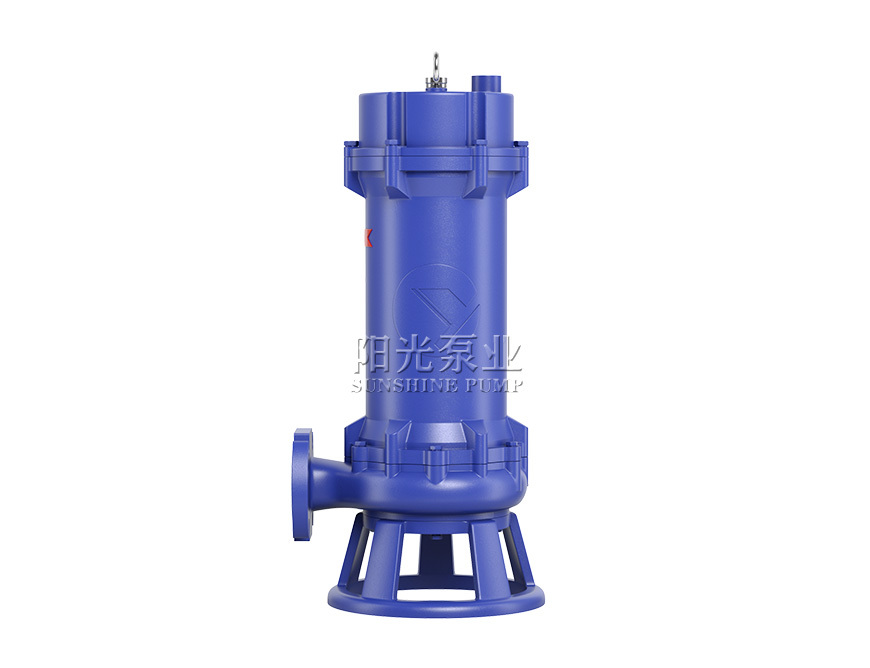

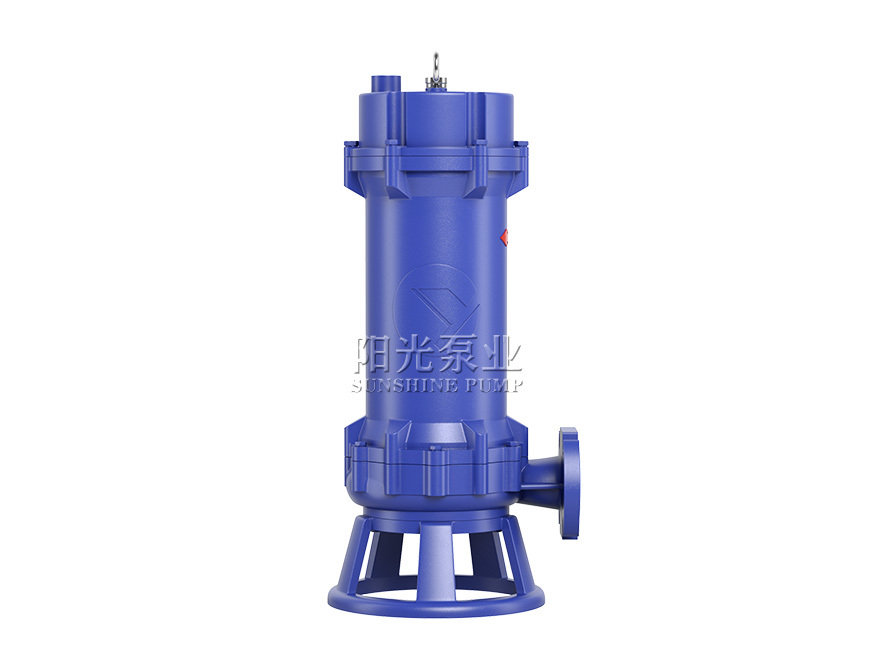

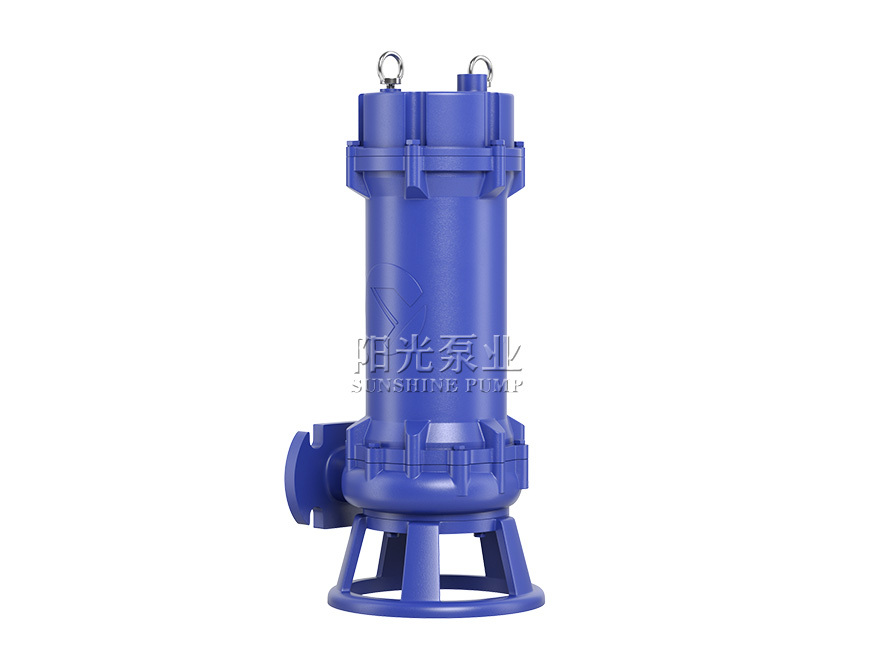

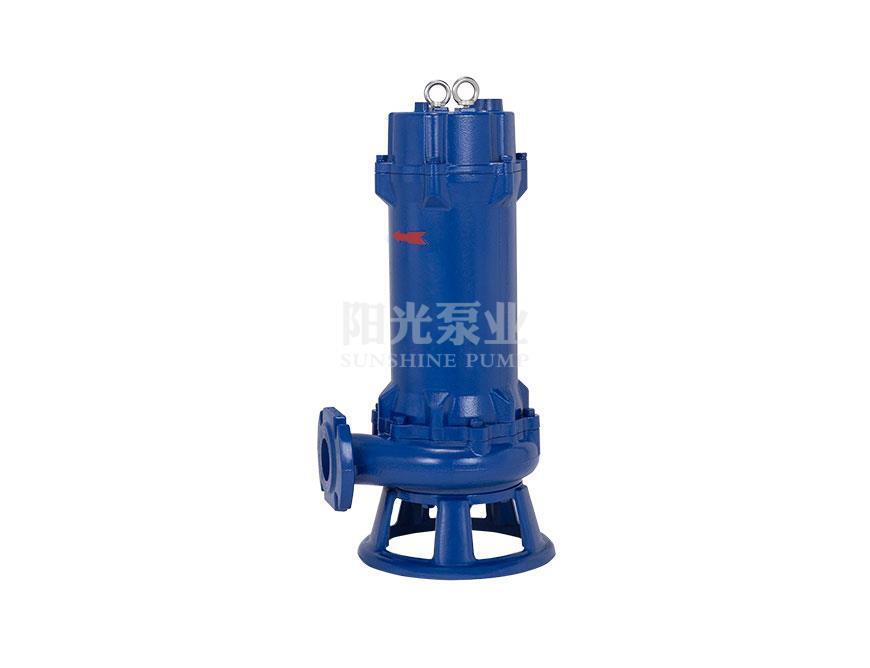

WQK/QG带切割装置潜水排污泵

搅匀污水池内沉淀污泥,能通过泵口径的5倍纤维物质

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
产品简介

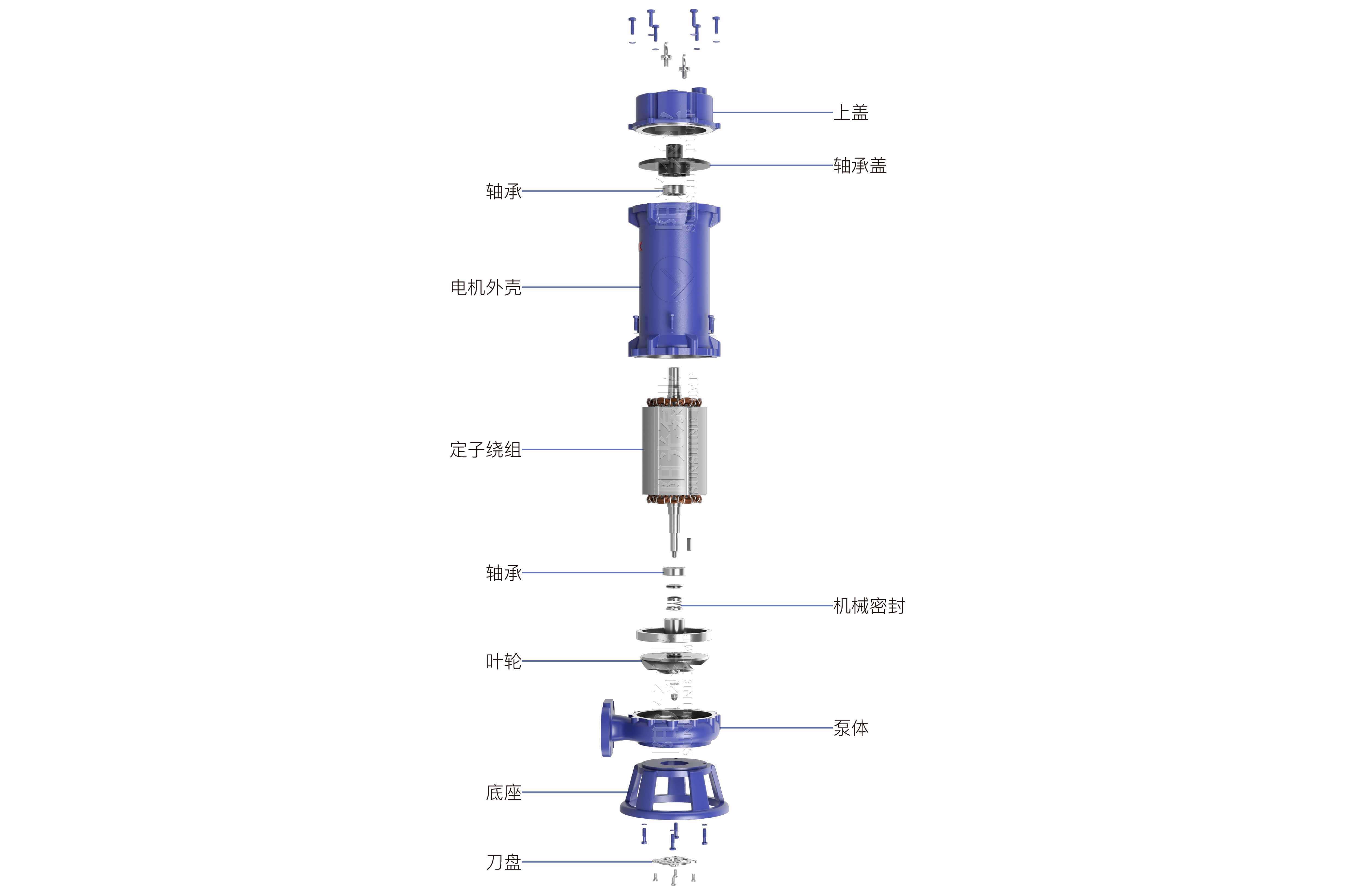

WQK/QG带切割装置排污泵具有排污通过能力特别强,带切割性能好,能将污水中的长纤维、塑料、纸、带、布条、稻草、绳子等杂质切碎后排出。上海阳光泵业WQK/QG带切割装置排污泵是优良的干式电机和水泵组合。WQK系列污水污物潜水排污泵主要用于排送生活废水、污水、人粪尿及含有短纤维纸屑、木屑、淀粉、泥沙、矿石粒等固体悬浮物和非腐蚀性介质,被抽送液体温度不超过40℃,密度不大于 1200kg/m3,ph值~9。该电泵采用双端面机械密封和旋转叶轮,叶轮采用不锈钢、耐磨损、不堵塞、不缠绕、具有体积小、结构紧凑、携方便等优点。

适用范围

·用于建筑工地、工程基础施工、市政设施、自来水厂。

·各种高楼大厦的地下室、人防坑洞、地铁等地下层污水排放。

·中小型企业污水处理及循环水输送。

·食品、造纸、酿造、钢铁及有色金属、制革、纺织、制药、水泥厂等厂矿企业的渣浆液抽送。

·养鸡场,养猪场,各种养殖业,鱼池作抽水清塘、增氧,化粪池等各种场合的人畜粪尿抽送等作用。

性能参数
   序号
型号

    口径

    (mm)

  流量

  (m³/h)

    扬程

    (m)

    功率

    (kW)

转速

(r/min)

1WQ25-8-22-1.1258221.12900
2WQ32-12-15-1.13212151.12900
3WQ40-15-15-1.54015151.52900
4WQ40-15-20-2.24015202.22900
5WQ50-10-10-0.755010100.752900
6WQ50-20-7-0.75502070.752900
7WQ50-20-15-1.55020151.52900
8WQ50-15-25-2.25015252.22900
9WQ50-18-30-3.050183032900
10WQ50-20-40-7.55020407.52900
11WQ50-24-20-450242042900
12WQ50-25-32-5.55025325.52900
13WQ50-20-55-11502055112900
14WQ50-20-70-15502070152900
15WQ50-20-80-18.550208018.52900
16WQ50-20-90-22502090222900
17WQ65-25-15-2.26525152.22900
18WQ65-37-13-365371332900
19WQ65-25-30-4.065253042900
20WQ65-30-40-7.56530407.52900
22WQ65-35-50-11653550112900
23WQ65-30-60-15653060152900
24WQ65-30-68-18.565306818.52900
25WQ65-30-75-22653075222900
26WQ80-40-7-2.2804072.22900
27WQ80-43-13-380431332900
28WQ80-40-15-480401542900
29WQ80-50-20-5.58050205.52900
30WQ80-65-25-7.58065257.52900
31WQ80-60-30-11806030112900
32WQ80-60-40-15806040152900
33WQ80-60-45-18.580604518.52900
34WQ80-60-50-22806050222900
35WQ100-80-10-4.0100801042900
36WQ100-110-10-5.5100110105.52900
37WQ100-80-20-7.510080207.52900
38WQ100-80-25-111008025112900
39WQ100-80-35-151008035152900
40WQ100-80-40-18.5100804018.52900
41WQ100-80-45-221008045222900
42WQ150-100-20-11 1501002011 2900
43WQ 150-120-15-11 15012015112900
44WQ150-100-30-15  1501003015  2900
45WQ150-120-25-1515012025152900
46WQ150-100-36-18.51501003618.52900
47WQ150-100-40-2215010040222900
48WQ200-180-11-1120018011112900
49WQ200-180-15-1520018015152900
50WQ200-180-18-18.52001801818.52900
51WQ200-200-20-2220020020222900
52WQ80-80-13-5.58080135.51450
53WQ80-80-20-7.58080207.51450
54WQ100-110-10-5.5100110105.51450
55WQ100-100-15-7.5100100157.51450
56WQ100-100-25-1110010025111450
57WQ100-100-30-1510010030151450
58WQ100-100-35-18.51001003518.51450
59WQ100-100-40-2210010040221450
60WQ100-100-57-4510010057451450
61WQ100-100-65-5510010065551450
62WQ100-100-100-1101001001001101450
63WQ100-120-45-3010012045301450
64WQ100-120-50-3710012050371450
65WQ100-120-75-7510012075751450
66WQ100-120-85-9010012085901450
67WQ125-130-15-1112513015111450
68WQ125-130-20-1512513020151450
69WQ150-150-7-5.515015075.51450
70WQ150-145-9-7.515014597.51450
71WQ150-180-11-1115018011111450
72WQ150-180-15-1515018015151450
73WQ150-180-20-18.51501802018.51450
74WQ150-200-20-2215020020221450
75WQ150-240-20-3015024020301450
76WQ150-150-35-3715015035371450
77WQ150-180-45-4515018045451450
78WQ150-200-15-1515020015151450
79WQ150-180-25-2215018025221450
80WQ150-200-50-5515020050551450
81WQ150-200-60-7515020060751450
82WQ150-200-75-9015020075901450
84WQ150-130-30-2215013030221450
85WQ150-180-30-3015018030301450
86WQ150-180-50-5515018050551450
87WQ150-180-80-110150180801101450
88WQ150-200-35-3715020035371450
89WQ150-200-40-4515020040451450
90WQ150-200-70-9015020070901450
91WQ150-200-90-132150200901321450
92WQ150-200-110-1851502001101851450
93WQ150-220-100-1601502201001601450
94WQ200-250-6-7.520025067.51450
95WQ200-300-7-112003007111450
96WQ200-250-11-1520025011151450
97WQ200-250-15-18.52002501518.51450
98WQ200-300-16-2220030016221450
99WQ200-400-10-2220040010221450
100WQ200-400-13-3020040013301450
101WQ200-300-15-2220030015221450
102WQ200-250-22-3020025022301450
103WQ200-350-25-3720035025371450
104WQ200-400-25-4520040025451450
105WQ200-400-30-5520040030551450
106WQ200-350-40-7520035040751450
107WQ200-280-50-9020028050901450
108WQ200-380-28-4520038028451450
109WQ200-300-28-3720030028371450
110WQ200-300-32-4520030032451450
111WQ200-300-40-5520030040551450
112WQ200-300-60-9020030060901450
113WQ200-300-65-110200300651101450
114WQ200-350-10-18.52003501018.51450
115WQ200-350-45-7520035045751450
116WQ200-400-50-9020040050901450
117WQ250-400-5-112504005111450
118WQ200-400-75-132200400751321450
119WQ200-400-85-160200400851601450
120WQ200-400-90-185200400901851450
121WQ250-500-5-152505005151450
122WQ250-500-7-18.5250500718.51450
123WQ250-500-9-222505009221450
124WQ250-500-12-3025050012301450
125WQ250-600-9-302506009301450
126WQ250-600-12-3725060012371450
127WQ250-600-15-4525060015451450
128WQ250-600-20-5525060020551450
129WQ250-600-25-7525060025751450
130WQ250-600-30-9025060030901450
131WQ250-600-40-110250600401101450
132WQ250-600-50-132250600501321450
133WQ250-600-60-160250600601601450
134WQ250-600-70-185250600701851450
135WQ250-750-75-200250750752001450
136WQ250-520-8-22250520822980
137WQ300-650-5-18.5300650518.51450
138WQ300-650-7-223006507221450
139WQ300-800-7-303008007301450
140WQ300-800-9-373008009371450
141WQ300-800-12-4530080012451450
142WQ300-500-15-4530050015451450
143WQ300-800-15-5530080015551450
144WQ300-600-20-5530060020551450
145WQ300-800-20-7530080020751450
146WQ300-950-20-9030095020901450
147WQ300-800-25-9030080025901450
148WQ300-1000-25-1103001000251101450
149WQ300-800-32-110300800321101450
150WQ300-800-36-132300800361321450
151WQ300-800-40-160300800401601450
152WQ300-900-40-185300900401851450
153WQ300-1000-45-2003001000452001450
154WQ300-1000-55-3153001000553151450
155WQ300-1200-45-2503001200452501450
156WQ350-1000-6-3735010006371450
157WQ350-1000-10-55350100010551450
158WQ350-1100-6-373501100637980
159WQ350-1100-10-5535011001055980
160WQ350-1000-15-75350100015751450
161WQ350-1000-18-90350100018901450
162WQ350-1100-38-1853501100381851450
163WQ350-1200-8-4535012008451450
164WQ350-1200-18-9035012001890980
165WQ350-1200-35-160350120035160980
166WQ350-1300-8-453501300845980
167WQ350-1500-12-7535015001275980
168WQ350-1300-20-1103501300201101450
169WQ350-1500-4-303501500430980
171WQ350-1200-18-9035012001890980
172WQ350-1500-20-132350150020132980
173WQ350-1600-16-110350160016110980
174WQ350-1100-28-1323501100281321450
175WQ350-1500-20-132350150020132980
176WQ350-1000-35-1603501000351601450
177WQ350-1200-35-160350120035160980
178WQ350-1300-35-2003501300352001450
179WQ350-1500-45-3153501500453151450
180WQ350-1500-36-2503501500362501450
181WQ400-1300-5-374001300537980
182WQ400-1300-8-5540013008551450
183WQ400-1300-13-75400130013751450
184WQ400-1300-16-90400130016901450
185WQ400-1500-8-554001500855980
186WQ400-1500-15-9040015001590980
187WQ400-1500-17-1104001500171101450
188WQ400-1500-30-2004001500302001450
189WQ400-1600-20-1604001600201601450
190WQ400-1600-22-160400160022160980
191WQ400-1600-25-1854001600251851450
192WQ400-1700-16-1324001700161321450
193WQ400-1800-30-2504001800302501450
194WQ400-2000-36-3154002000363151450
195WQ400-1700-6-454001700645980
196WQ400-1700-10-7540017001075980
197WQ400-1500-8-554001500855980
198WQ400-1700-10-7540017001075980
199WQ400-1800-15-110400180015110980
200WQ400-2000-15-132400200015132980
202WQ400-1600-22-160400160022160980
203WQ400-1500-26-160400150026160980
204WQ400-2000-20-185400200020185980
207WQ400-1800-15-110400180015110980
208WQ400-2200-28-250400220028250980
209WQ400-2300-22-200400230022200980
212WQ500-2000-8-755002000875980
213WQ500-2000-10-9050020001090980
214WQ500-2200-5-555002200555980
215WQ500-2500-8-905002500890740
216WQ500-2500-10-110500250010110980
217WQ500-2600-16-160500260016160980
218WQ500-2700-6-755002700675740
219WQ500-2800-10-132500280010132980
220WQ500-3100-10-132500310010132740
223WQ500-3000-14-160500300014160740
224WQ500-3000-15-185500300015185980
225WQ500-3000-21-250500300021250980
226WQ500-3000-35-400500300035400980
227WQ500-3100-10-132500310010132740
228WQ500-3500-15-200500350015200980
229WQ500-3500-25-315500350025315980
230WQ500-4000-32-550500400032550980
231WQ600-3000-6-906003000690740
232WQ600-3200-7-11060032007110980
233WQ600-3700-8-13260037008132980
234WQ600-3800-6-11060038006110740
235WQ600-4000-8-13260040008132740
236WQ600-3700-10-160600370010160980
237WQ600-4000-10-160600400010160740
238WQ600-3700-12-185600370012185980
239WQ600-4500-12-200600450012200980
240WQ600-4000-18-250600400018250980
241WQ600-4500-20-315600450020315980
242WQ600-5000-22-400600500022400980
243WQ600-5500-25-550600550025550980
资料下载
PDF
下载产品PDF图册资料 PDF下载

文件大小:1.59M
