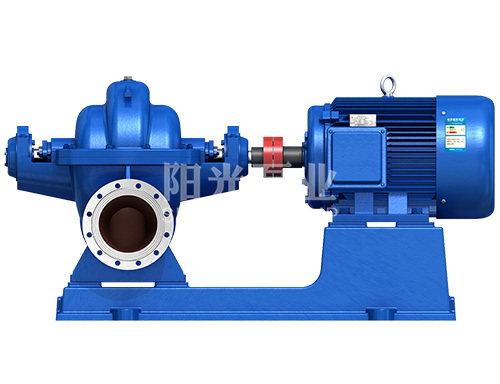

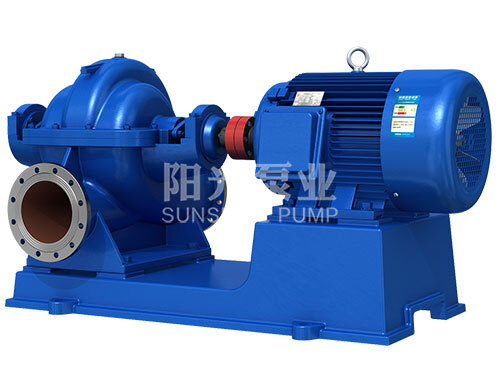

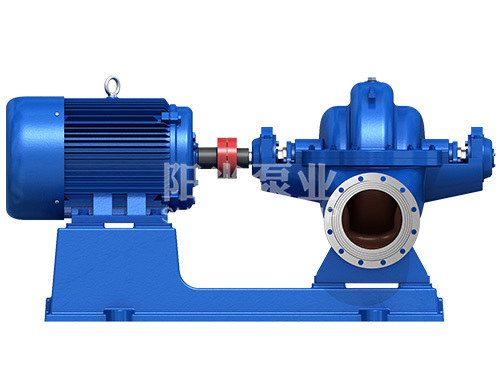

S、SH型单级双吸离心泵

质量稳定:全程质量监控,细致入微,全方位检测,保证产品质量!
交货快捷:先进生产流水线,备货充足,常规产品全部仓库现货供应!
专业定制:高级工程师专业选型报价,各种材质非标产品皆可洽谈定做!

销售热线 021-66528888
免费电话 在线咨询
产品简介

产品介绍:

S、SH型单级双吸离心泵壳中开之离心泵,泵主要零件有:泵体、泵盖、叶轮、轴、双吸密封环、轴套等。供抽送清水或物理化学性质类似于水的其它液体之用。被输送液体温度不得高于80℃。


产品特点:

具有结构紧凑、外形美观、稳定性好、便于安装、运行平稳、噪音低、使用寿命长、维修方便的特点。


产品用途:

适用于工厂、矿山、城市给水、电站、农田排灌和各种水利工程


产品结构:

 ·  主要零件有:泵体、泵盖、叶轮、轴、双吸密封环、轴套等。

 ·  吸入口与吐出口均在水泵轴心线的下方,与轴线垂直成水平方向,检修时无需拆卸进出口水管及电机。

 ·  从传动方向看去,水泵为顺时针方向旋转(可改为逆时针方向旋转)。

 ·  水泵通过联轴器由电动机直接传动。

 ·  轴封为软填料密封(可采用机械密封结构),在填料之间有水封环,水泵工作时小量高压水通过水风管流入填料腔起水封作用。


性能参数
序号型号流量
(m3/h)
扬程
 (m)
功率
 (kw)
转速
 (r/min)
1150S-50(6SH-9)16050372900
2150S-50A(6SH-9A)14440302900
3150S-50B(6SH-9B)13336222900
4150S-78(6SH-6)16078552900
5150S-78A(6SH-6A)14462452900
6200S-42(8SH-13)28042452900
7200S-42A(8SH-13A)27036372900
8200S-63(8SH-9)28063752900
9200S-63A(8SH-9A)27046552900
10200S-63B(8SH-9B)23944452900
11200S-95(8SH-6)280951322900
12200S-95A(8SH-6A)270851102900
13200S-95B(8SH-6B)26075902900
14250S-14(10SH-19)48514301450
15250S-14A(10SH-19A)4321118.51450
16250S-24(10SH-13)48524451450
17250S-24A(10SH-13A)41420371450
18250S-39(10SH-9)48539751450
19250S-39A(10SH-9A)46830551450
20250S-65(10SH-6)485651321450
21250S-65A(10SH-6A)42048901450
22300S-12(12SH-28)79012371450
23300S-12A(12SH-28A)72010301450
24300S-19(12SH-19)79019551450
25300S-19A(12SH-19A)72016451450
26300S-32(12SH-13)79032901450
27300S-32A(12SH-13A)72026751450
28300S-58(12SH-9)790582001450
29300S-58A(12SH-9A)720491601450
30300S-58B(12SH-9B)684431321450
31300S-90(12SH-6)790903201450
32300S-90A(12SH-6A)756782801450
33300S-90B(12SH-6B)720672201450
34350S-16(14SH-28)126016751450
35350S-16A(14SH-28A)104413551450
36350S-26(14SH-19)1260261321450
37350S-26A(14SH-19A)111621901450
38350S-44(14SH-13)1260442201450
39350S-44A(14SH-13A)1116361601450
40350S-75(14SH-9)1260753551450
41350S-75A(14SH-9A)1170652801450
42350S-75B(14SH-9B)1080552201450
43350S-125(14SH-6)12601257101450
44350S-125A(14SH-6A)11811125601450
45350S-125B(14SH-6B)1080965001450
46400S-40108040185970
47400S-40A100733160970
48400S-40B87026100970
49400S-901620905601450
50400S-90A1460734501450
51400S-90B1300583151450
52500S-13202013110970
53500S-22202022185970
54500S-22A174617132970
55500S-35202035280970
56500S-35A174627220970
57500S-59202059450970
58500S-59A187249400970
59500S-59B174635280970
60500S-98202098800970
61500S-98A187283630970
62500S-98B174674560970
63600S-22317022250970
64600S-22A286018185970
65600S-32317032355970
66600S-32A285026280970
67600S-32B262822250970
68600S-47317047560970
69600S-47A292040450970
70600S-75317075900970
71600S-75A295065710970
72600S-75B271055560970
73600S-10031701001250970
74600S-100A3000901120970
75600S-100B283080900970
76800S-22550022450730
77800S-22440014250585
78800S-22A483017315730
79800S-22A387011185585
80800-32550032630730
81800-32440020315585
82800-32A495026450730
83800-32A396017250585
84800S-475500471000730
85800S-47440060450585
86800S-47A507040710730
87800S-47A406025355585
88800S-765500761600730
89800S-76440049800585
90800S-76A5080651250730
91800S-76A407042630585
92800S-76B4680551000730
93800S-76B375035500585
