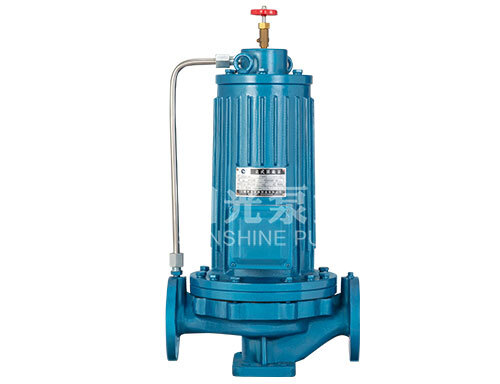

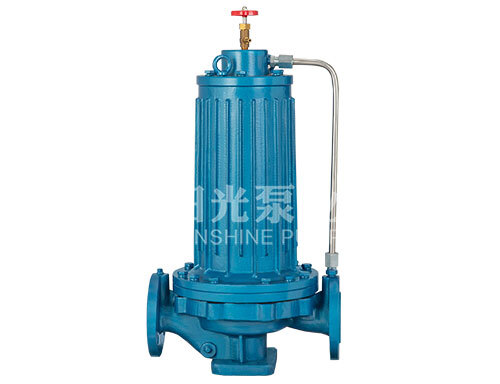

SPG型立式管道屏蔽泵

质量稳定:全程质量监控,细致入微,全方位检测,保证产品质量!
交货快捷:先进生产流水线,备货充足,常规产品全部仓库现货供应!
专业定制:高级工程师专业选型报价,各种材质非标产品皆可洽谈定做!

销售热线 021-66528888
免费电话 在线咨询
产品简介

产品介绍:

SPG型立式管道屏蔽泵,经上海阳光泵业消化革新,新推出的屏蔽泵新品,在原有基础上改进电磁核心技术,改善了流体运动状态,提高效率10%以上,综合性能指标都上了一个台阶,立式屏蔽泵产品也更加理想。


适用范围:

 ·  输送压力和温度不产生结晶和凝固的液体。

 ·  特别是对振动、噪音要求高的场所,如重点工程、泵房、中央空调等。

 ·  特别是人体及环境有害的和不安全的液体和贵重液体等,如强腐蚀性,剧毒性,挥发性,放射性等介质。

 ·  石油、化学工业,医药、纺织、核电、军工及城市给排水,消防增压,高层建筑增压送水,园林喷灌,暖通制冷,等冷暖水循环增压。

性能参数
序号型号口径
 (mm)
流量扬程
 (m)
效率
(%)
  转速    (r/min)电机功率  (KW)汽蚀余量
 (m)
m3/hL/S
1SPG15-80151.10.38.52628000.182.3
1.50.42834
20.55734
2SPG20-110201.80.5162528000.372.3
2.50.691534
3.30.9113.535
3SPG20-160201.80.5331929000.752.3
2.50.693225
3.30.913023
4SPG25-110252.80.78163429000.552.3
41.111542
5.21.4413.541
5SPG25-125252.80.7820.62829000.752.3
41.112036
5.21.441835
6SPG25-125A252.50.69173529000.552.3
3.6116
4.61.2814.4
7SPG25-160252.80.78332429001.52.3
41.113232
5.21.443033
8SPG25-160A252.60.12293129001.12.3
3.71.0328
4.91.3626
9SPG32-100(I)324.41.2213.24829000.752
6.31.7512.554
8.32.3211.353
10SPG32-125323.50.97224029000.752.3
50.392044
6.51.81842
11SPG32-125A323.10.8617.64329000.552.3
4.51.2516
5.81.6114.4
12SPG32-160(I)324.41.2233.23429002.22
6.31.753240
8.32.3230.242
13SPG32-200(I)324.41.2250.526290042
6.31.755033
8.32.324835
14SPG32-200A322.80.7844.63429002.22
41.114440
5.21.4442.742
15SPG40-100404.41.2213.24829000.552.3
6.31.7512.554
8.32.3111.353
16SPG40-100A403.91.0810.65229000.372.3
5.61.5610
7.42.069
17SPG40-125404.41.22214129001.12.3
6.31.752046
8.32.311843
18SPG40-125A403.91.0817.64029000.752.3
5.61.561645
7.42.0614.441
19SPG40-160404.41.22333529002.22.3
6.31.753240
8.32.313040
20SPG40-160A404.11.14293429001.52.3
5.91.642839
7.82.1726.339
21SPG40-160B403.81.0625.53429001.12.3
5.51.532438
7.2222.537
22SPG40-200404.41.225126290042.3
6.31.755033
8.32.314832
23SPG40-200A404.11.144526290032.3
5.91.644431
7.82.174230
24SPG40-200B403.71.03382929002.22.3
5.31.4736
71.9434.5
25SPG40-250404.41.22822429007.52.3
6.31.758028
8.32.317428
26SPG40-250A404.11.14722429005.52.3
5.91.647028
7.82.176527
27SPG40-250B403.81.0661.523290042.3
5.51.536027
71.945626
28SPG40-100(I)408.82.4413.25529001.12.3
12.53.4712.562
16.34.5311.360
29SPG40-100(I)A4082.2210.66029000.752.3
113.0510
14.54.039
30SPG40-125(I)408.82.4421.24929001.52.3
12.53.472058
16.34.5317.857
31SPG40-125(I)A4082.22175729001.12.3
113.0516
14.54.0314
32SPG40-160(I)408.82.443345290032.3
12.53.473252
16.34.533051
33SPG40-160(I)A408.22.28294429002.22.3
11.73.252851
15.24.222650
34SPG40-160(I)B407.32.38235029001.52.3
10.42.8922
13.53.7520.5
35SPG40-200(I)408.82.4451.23829005.52.3
12.53.475046
16.34.534846
36SPG40-200(I)A408.32.314537290042.3
11.73.254445
15.34.254245
37SPG40-200(I)B407.52.083744290032.3
10.62.9436
13.83.8334
38SPG40-250(I)408.82.4481.2312900112.3
12.53.478038
16.34.5377.540
39SPG40-250(I)A408.22.28713829007.52.3
11.63.2270
15.24.2268
40SPG40-250(I)B407.62.1161.43729007.52.3
10.8360
143.8958
41SPG40-250(I)C407.11.9753.23629005.52.3
102.7852
13.13.6450.4
42SPG50-100508.82.4413.65529001.12.3
12.53.4712.562
16.34.5311.360
43SPG50-100A5082.22116029000.752.3
113.0510
14.54.039
44SPG50-125508.82.4421.54929001.52.3
12.53.472058
16.34.5317.857
45SPG50-125A5082.22175729001.12.3
113.0516
14.54.0314
46SPG50-160508.82.443345290032.3
12.53.473252
16.34.533051
47SPG50-160A508.22.28294429002.22.3
11.73.252851
15.24.222650
48SPG50-160B507.32.38235029001.52.3
10.42.8922
13.53.7520.5
49SPG50-200508.82.44523829005.52.3
12.53.475046
16.34.534846
50SPG50-200A508.32.3145.837290042.3
11.73.254445
15.34.254245
51SPG50-200B507.52.083744290032.3
10.62.9436
13.83.8334
52SPG50-250508.82.4482292900112.3
12.53.478038
16.34.5377.540
53SPG50-250A508.22.2871.53829007.52.3
11.63.2270
15.24.2268
54SPG50-250B507.62.1161.43729007.52.3
10.8360
143.8958
55SPG50-250C507.11.9753.23629005.52.3
102.7852
13.13.6450.4
56SPG50-100(I)5017.54.8613.76729001.52.5
256.9412.569
32.59.0310.569
57SPG50-100(I)A5015.64.3116529001.12.5
22.36.191067
298.18.468
58SPG50-125(I)5017.54.8621.560290032.5
256.942068
32.59.031867
59SPG50-125(I)A5015.64.33175829002.22.5
22.36.191666
298.113.665
60SPG50-160(I)5017.54.6834.454290042.5
256.943263
32.59.0327.560
61SPG50-160(I)A5016.44.563054290042.5
23.46.52862
30.48.442459
62SPG50-160(I)B50154.172658290032.5
21.6624
287.7820.6
63SPG50-200(I)5017.54.8652.74929007.52.5
256.945058
32.59.0345.559
64SPG50-200(I)A5016.44.5646.44829007.52.5
23.56.534457
30.58.474058
65SPG50-200(I)B5015.24.22405529005.52.5
21.86.0638
28.37.8634.5
66SPG50-250(I)5017.54.8682392900152.5
256.948050
32.59.0376.552
67SPG50-250(I)A5016.44.5671.5392900112.5
23.46.57050
30.58.476752
68SPG50-250(I)B50154.1761382900112.5
21.666049
287.7857.454
69SPG50-315(I)5017.54.86128302900302.5
256.9412540
32.59.0312244
70SPG50-315(I)A5016.64.61115302900222.5
23.76.5811340
318.611044
71SPG50-315(I)B5015.74.3610339290018.52.5
22.56.25101
29.2898
72SPG50-315(I)C5014.4486382900152.5
20.65.7285
26.87.4483
73SPG65-1006517.54.8613.76729001.52.5
256.9412.569
32.59.0310.569
74SPG65-100A6515.64.3116529001.12.5
22.36.191067
298.18.468
75SPG65-1256517.54.8621.560290032.5
256.942068
32.59.031867
76SPG65-125A6515.64.33175829002.22.5
22.36.191666
298.114.465
77SPG65-1606517.54.8634.454290042.5
256.943263
32.59.0327.560
78SPG65-160A6516.44.563054290042.5
23.46.52862
30.48.442459
79SPG65-160B65154.172658290032.5
21.6624
287.7820.6
80SPG65-2006517.54.8652.74929007.52.5
256.945058
32.59.0345.559
81SPG65-200A6516.44.5646.44829007.52.5
23.56.534457
30.58.474058
82SPG65-200B6515.24.22405529005.52.5
21.86.0638
28.37.8634.5
83SPG65-2506517.54.8682392900152.5
256.948050
32.59.0376.552
84SPG65-250A6516.44.5671.5392900112.5
23.46.57050
30.58.476752
85SPG65-250B65154.1761382900112.5
21.666049
287.7857.454
86SPG65-3156517.54.86127322900302.5
256.9412540
32.59.0312244
87SPG65-315A6516.64.61115322900222.5
23.76.5811340
318.611044
88SPG65-315B6515.74.3610339290018.52.5
22.56.25101
29.2898
89SPG65-315C6514.4486382900152.5
20.65.7285
26.87.4483
90SPG65-100(I)65359.7213.867290033
5013.912.573
6518.11070
91SPG65-100(I)A6531.38.7116629002.23
44.712.41072
5816.1869
92SPG65-125(I)65359.72226729005.53
5013.92072.5
6518.11770
93SPG65-125(I)A6531.38.717.566290043
44.712.51671
5816.113.669
94SPG65-160(I)65359.72356329007.53
5013.93271
6518.12870
95SPG65-160(I)A6532.79.130.66229007.53
46.7132870
6116.92469
96SPG65-160(I)B6530.38.4266929005.53
43.31224
56.315.621
97SPG65-200(I)65359.7253.5552900153
5013.95067
6518.14668
98SPG65-200(I)A6532.89.147542900113
4713.14466
6116.94067
99SPG65-200(I)B6530.58.540.66529007.53
43.512.138
56.615.733.4
100SPG65-250(I)65359.7283522900223
5013.98059
6518.17260
101SPG65-250(I)A6532.597352290018.53
46.7137059
6116.96360
102SPG65-250(I)B65308.362582900153
43.31260
5615.654
103SPG65-315(I)65359.72128442900373
5013.912554
6518.112157
104SPG65-315(I)A6532.59112.6432900303
46.512.911054
60.516.8106.457
105SPG65-315(I)B65318.6102.5532900303
44.512.4100
5816.198
106SPG65-315(I)C65298.187512900223
4111.485
53.614.983
107SPG80-10080359.7213.867290033
5013.912.573
6518.11070
108SPG80-100A8031.38.7116629002.23
44.712.51072
5816.1869
109SPG80-12580359.72226729005.53
5013.92072.5
6518.11770
110SPG80-125A8031.38.717.566290043
4512.51671
5816.113.669
111SPG80-16080359.72356329007.53
5013.93271
6518.12870
112SPG80-160A8032.79.130.66229007.53
46.7132870
6116.92469
113SPG80-160B8030.38.4266929005.53
43.31224
56.315.621
114SPG80-20080359.7253.5552900153
5013.95067
6518.14668
115SPG80-200A8032.89.147542900113
4713.14466
6116.94067
116SPG80-200B8030.58.540.66529007.53
43.512.138
56.615.733.4
117SPG80-25080359.7283522900223
5013.98059
6518.17260
118SPG80-250A8032.597352290018.53
46.7137059
6116.96360
119SPG80-250B80308.362582900153
43.31260
5615.654
120SPG80-31580359.72128432900373
5013.912554
6518.112257
121SPG80-315A8032.59112.6432900303
46.512.911054
60.516.8107.457
122SPG80-315B80318.6102.5532900303
44.512.4100
5816.198
123SPG80-315C80298.198512900223
4111.485
53.614.983
124SPG80-35080359.72146552900553
5013.915066
6518.114267
125SPG80-350A80318.6138.4652900453
44.512.4142
5816.1134.8
126SPG80-350B80298.1131.4632900373
4111.4135
53.614.9127.8
127SPG80-100(I)807019.413.66629005.54.5
10027.812.576
13036.11175
128SPG80-100(I)A8062.617.41164290044.5
8924.71074
11632.28.874
129SPG80-125(I)807019.423.5702900114.5
10027.82076
13036.11465
130SPG80-125(I)A8062.617.4196829007.54.5
8924.71674
11632.21165
131SPG80-160(I)807019.436.5702900154.5
10027.83276
13036.12465
132SPG80-160(I)A8065.418.232682900114.5
93.5262874
121.633.82167
133SPG80-160(I)B8060.616.872722900114.5
86.624.124
112.531.318
134SPG80-200(I)807019.454652900224
10027.85074
13036.14273
135SPG80-200(I)A8065.418.247.564290018.54
93.5264473
121.633.83772
136SPG80-200(I)B806116.941712900154
8724.238
11331.432
137SPG80-250(I)807019.487622900374
10027.88069
13036.16868
138SPG80-250(I)A8065.418.276612900304
93.5267068
121.633.859.567
139SPG80-250(I)B806116.965662900304
8724.260
11331.451
140SPG80-315(I)807019.4132552900754
10027.812566
13036.111467
141SPG80-315(I)A8066.518.5119552900554
9526.411366
123.634.310367
142SPG80-315(I)B806317.5106.6652900454
9025101
11732.592
143SPG80-315(I)C805816.190632900374
8222.885
10729.776
144SPG100-1001007019.413.66629005.54.5
10027.812.576
13036.11175
145SPG100-100A10062.617.41164290044.5
89471074
11632.28.874
146SPG100-1251007019.423.5702900114.5
10027.82076
13036.11465
147SPG100-125A10062.617.4196829007.54.5
8924.71674
11632.21163
148SPG100-1601007019.436.5702900154.5
10027.83276
13036.12465
149SPG100-160A10065.418.232682900114.5
93.5262874
121.633.82167
150SPG100-160B10060.616.827722900114.5
86.624.124
112.531.318
151SPG100-2001007019.454652900224
10027.85074
13036.14273
152SPG100-200A10065.418.247.564290018.54
93.5264473
121.633.83772
153SPG100-200B1006116.941712900154
8724.238
11331.432
154SPG100-2501007019.437622900374
10027.88069
13036.16868
155SPG100-250A10065.418.276612900304
93.5267068
121.633.859.567
156SPG100-250B1006116.965662900304
8724.260
11331.451
157SPG100-3151007019.4132552900754
10027.812566
13036.111467
158SPG100-315A10066.518.5119652900554
9526.411366
123.634.310367
159SPG100-315B1006317.5106.6652900454
9025101
11732.592
160SPG100-315C1005816.190632900374
8222.885
10729.776
161SPG100-100(I)1009626.714642900114.5
16044.412.573
19253.31070
162SPG100-125(I)1009626.724622900154.5
16044.42074
19253.31469
163SPG100-125(I)A1008423.320642900114.5
140391772
16846.71268
164SPG100-160(I)1009626.736692900225.6
16044.43279
19253.32775
165SPG100-160(I)A1008423.33266290018.55
140392876
16846.723.572
166SPG100-200(I)1009626.753692900375.2
16044.45079
19253.34578
167SPG100-200(I)A1008423.348642900304.5
140394574
16846.74073
168SPG100-200(I)B1006016.743722900224.5
10027.840
12033.336
169SPG100-250(I)1009626.783652900554.8
16044.48077
19253.37274
170SPG100-250(I)A1008423.375602900454.5
140397272
16846.76569
171SPG100-250(I)B1006016.768702900374.5
10027.865
12033.358
172SPG100-3501006016.7153.6722900904
10027.815057
12033.314274
173SPG100-350A1006116.9145.6752900754
8724.2142
11331.4134
174SPG100-350B1005816.1138.6752900554
8222.8135
10729.7127
175SPG125-1001259626.713822900114
16044.412.5
19253.312
176SPG125-100A1258623.910.47729007.54
14339.710
17247.89.6
177SPG125-1251259626.722.6802900154
16044.420
19253.317
178SPG125-125A1258623.918772900114
14339.716
17247.813.6
179SPG125-1601259626.736782900224
16044.432
19253.328
180SPG125-160A125902531.576290018.54
15041.728
1805024.5
181SPG125-160B1258321.727732900154
13838.324
16646.121
182SPG125-2001259626.755772900375.5
16044.450
19253.346
183SPG125-200A125902548.4762900305.5
15041.744
1805040.5
184SPG125-200B1258321.741.3752900225.5
13838.337.5
16646.134.5
185SPG125-2501259626.787752900555
16044.480
19253.373
186SPG125-250A125902576742900455.5
15041.770
1805084
187SPG125-250B1258321.765732900375.5
13838.360
16646.155
188SPG125-3151259626.7133702900905
16044.7125
19253.3119
189SPG125-315A1259025117702900755
15041.7110
18050104.6
190SPG125-315B1258623.9106.4692900755
14339.7100
17247.895.2
191SPG125-315C12580.522.496672900555
13437.288
16144.786
192SPG150-1251509626.722.6662900114
16044.42476
19253.31776
193SPG150-125A1509025187729007.54
15041.716
1805013.6
194SPG150-1601509626.736752900224
16044.432
19253.327
195SPG150-160A15090253276290018.54
15041.728
1805023.5
196SPG150-160B1508423.327732900154
1403924
16846.721
197SPG150-20015014038.913.8681450153
20055.612.578
26072.210.678
198SPG150-200A15012534.711661450113
17649.71076
232.564.68.576
199SPG150-200B1508423.341752900224
1403938
16846.734
200SPG150-25015014038.921.873145018.53
20055.62079
26072.21777
201SPG150-250A15012935.818.5721450153
184.451.21778
24066.714.476
202SPG150-250B15011732.515.2761450113
16746.414
217.560.412
203SPG150-31515014038.933.8701450302.5
20055.63278
26072.22873
204SPG150-315A15013136.429.5691450223.5
18751.92877
24367.524.577
205SPG150-315B15012133.52576145018.53.5
17348.124
22562.521
206SPG150-3501509626.7153.68029001105.5
16044.4150
19253.3142.8
207SPG150-350A1509025145.6702900905.2
15041.7142
18050134.8
208SPG150-350B1508423.3138.6652900755.5
1403913576
16846.7127.874
209SPG150-40015014038.953681450453.5
20055.65075
26072.24471
210SPG150-400A15013136.446.6671450373.5
18751.94474
24367.538.370
211SPG150-400B15012233.940731450303.5
17448.338
226.562.933
212SPG150-400C15011231.134711450223.5
16044.432
20857.828
213SPG150-250(I)15012033.387652900754.5
20055.68076
24066.77274
214SPG150-250(I)A15011231.176642900554.5
18751.97075
22462.26373
215SPG150-250(I)B15010428.965632900454.5
17348.16074
20857.85472
216SPG150-315(I)15012033.31335829001104.5
20055.612573
24066.712075
217SPG150-315(I)A15011231.1116572900904.5
18751.911072
22462.210574
218SPG150-315(I)B15010428.9100552900754.5
17348.19570
20857.89172
219SPG200-20020014038.913.8681450153
20055.612.578
26072.210.678
220SPG200-200A20012534.711661450113
17949.71076
232.564.68.576
221SPG200-25020014021.821.873145018.53
200202079
260171777
222SPG200-250A20012918.518.5721450153
184.4171778
24014.414.476
223SPG200-250B20011715.215.2761450113
1671414
217.51212
224SPG200-31520014033.833.8701450303.5
200323278
260282878
225SPG200-315A20013129.529.5691450223.5
189282877
24324.524.577
226SPG200-315B200121252576145018.53.5
1732424
2252121
227SPG200-4002001405353681450453.5
200505075
260444471
228SPG200-400A20013146.646.6671450373.5
187444474
24338.338.370
229SPG200-400B2001224040731450303.5
1743838
226.53333
230SPG200-400C2001123434711450223.5
1603232
2082828
231SPG200-200(I)20028077.813.4701450224
400111.112.580
52014410.579
232SPG200-200(I)A20025069.410.768145018.54
35890.41073
465129.28.577
233SPG200-250(I)20028077.822.2751450304
400111.12080
5201441472
234SPG200-250(I)A20025069.418731450224
35899.41678
465129.211.270
235SPG200-250(I)B20022662.814.470145018.54
32289.41375
419116.47.367
236SPG200-315(I)20028077.836731450554
400111.43280
5201442675
237SPG200-315(I)A20026272.831.5721450454
374103.92879
4861352374
238SPG200-315(I)B20024267.327781450374
34696.124
45012519.5
239SPG200-400(I)20028077.854.5751450754
400111.45081
5201443977
240SPG200-400(I)A20026272.848801450754
374103.944
48613534
241SPG200-400(I)B20024267.241.4781450555
34696.138
45012529.6
242SPG200-400(I)C20022462.234.9761450455
32088.932
416115.625
243SPG250-25025035097.222781450455
550152.82082
650180.51681
244SPG250-250A25030083.318.3761450375
5001391780
600166.71480
245SPG250-23525030083.314731480224.5
50013912.578
600166.71170
246SPG250-30025030083.322781480374.5
50013920
600166.716
247SPG250-31525035097.234761450755.5
550152.83280
650180.52879
248SPG250-315A25030083.329.5741450555.5
5001392878
600166.72477
249SPG250-315B25026072.225701450455.5
4501252474
520144.42072
250SPG250-40025030083.354.5721480904.5
50013950
600166.739
251SPG300-235300480133.32077970555
7202001881
90025015.574
252SPG300-235A300438121.716.575970455
607182.51579
821228.11372
253SPG300-235B300400111.11473970375
60016712.577
750208.31170
254SPG300-300300480133.33177970755
7202002881
9002502577
255SPG300-300A300444123.326.576970755
6661852480
833231.421.576
256SPG300-300B300415115.32379970555
623173.121
779261.418.5
257SPG300-380300480133.348849701325
72020044
90025034
258SPG300-380A300444123.341.4809701105
66618538
833231.430
259SPG300-380B300409113.63578970905
614170.632
767213.125
260SPG300-235(I)300718199.444.68214501605.5
108030040
1345373.634.6
261SPG300-235(I)A300642178.335.78014501325.5
965268.132
1203334.227.7
PDF文件下载
免费电话

无需话费,输入立即沟通

高级工程师 一对一服务

免费电话
在线咨询
