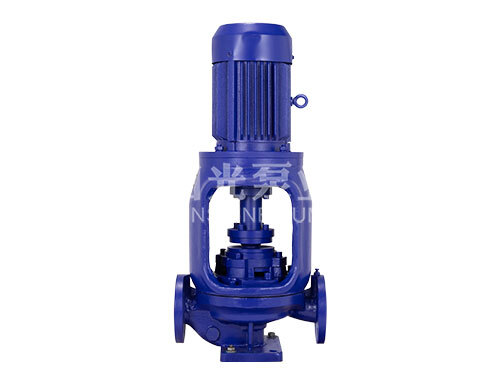

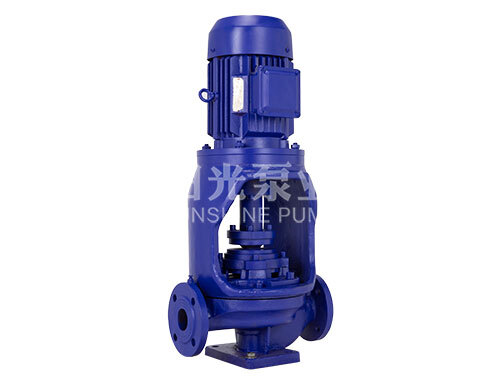

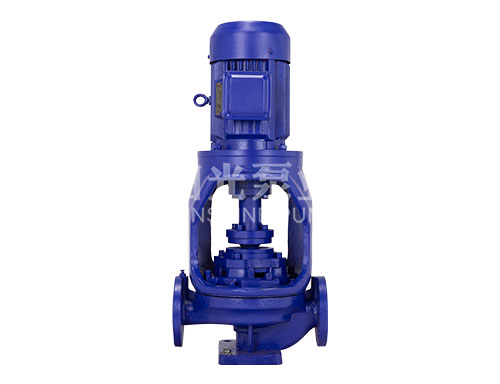

ISGB便拆立式管道离心泵

质量稳定:全程质量监控,细致入微,全方位检测,保证产品质量!
交货快捷:先进生产流水线,备货充足,常规产品全部仓库现货供应!
专业定制:高级工程师专业选型报价,各种材质非标产品皆可洽谈定做!

销售热线 021-66528888
免费电话 在线咨询
产品简介

产品介绍:

ISGB、ISRB型便拆立式管道离心泵是在ISG基础上开发成功的一种结构新颖、技术先进的泵类产品。该立式泵特别是在整体结构上进行大胆突破设计。该泵与国内同类产品相比,具有运转更平稳、使用寿命长、配套更方便、维护保养更轻松等无可代替的优点。在立式泵系列产品中属国内前列,各项技术居国内领先,是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规各种离心泵的最理想产品。


产品特点:

 ·  采用独立轴承体、泵轴支撑,解决了原来立式泵靠电机轴承支撑的不足之处。

 ·  立式结构,安装调试方便,独特设计的电机和泵体采用联接体联接,同心度高、加工精度高,占地面积大大减少,缩减了建筑投资。

 ·  底脚稳固、结构紧凑,精美的铸造和外观处理赋予立式离心泵新的美感,使产品焕发艺术的魅力,可以和国外著名厂家立式泵媲美。

 ·  配用国内著名厂家生产的低速Y系列标准通用电机,运行平稳、噪音极低、更换方便。

 ·  轴承采用国际著名品牌精密轴承,精度高、可靠性好、寿命长,对轴承的维护保养十分方便

 ·  叶轮采用90年代最优秀可自平衡轴向力的水力模型,使得泵轴承和机械密封使用寿命大大延长,消除了原立式泵轴向力大的不足之处

 ·  可拆卸爪型弹性联轴器,使泵起动无振动、无噪音,旋转部件设有可靠的安全防护罩,安全性极好。

 ·  机械密封采用不锈钢、碳化钨、氟橡胶等材料制成,耐高温、高压、运行寿命长,无渗漏,对轴无磨损,保证工作环境整洁。

 ·  泵盖结构设计独特,即可十分轻便取出轴承座、泵盖、泵轴、叶轮等组合件,进行更换机械密封和叶轮,维修方便快捷。


产品用途:

输送介质为清水或物理化学性质类似清水的其它液体


性能参数
序号型号功率
(kw)
流量扬程
(m)
效率
(%)
转速
(r/min)
(m3/h)(l/s)
1ISGB40-12.50.556.31.7512.5542900
2ISGB40-12.5A0.375.61.5610522900
3ISGB40-201.16.31.7520462900
4ISGB40-20A0.755.61.5616452900
5ISGB40-322.26.31.7532402900
6ISGB40-32A1.55.61.6428392900
7ISGB40-32B1.15.51.5324382900
8ISGB40-5046.31.7550332900
9ISGB40-50A35.91.6444312900
10ISGB40-50B2.25.31.4736292900
11ISGB40-807.56.31.7580282900
12ISGB40-80A5.55.91.6470282900
13ISGB40-80B5.55.51.5360272900
14ISGB40-12.5(I)1.112.53.4712.5622900
15ISGB40-12.5(I)A0.75113.0510602900
16ISGB40-20(I)1.512.53.4720582900
17ISGB40-20(I)A1.1113.0516572900
18ISGB40-32(I)3.012.53.4732522900
19ISGB40-32(I)A2.211.73.2528512900
20ISGB40-32(I)B1.510.42.8924502900
21ISGB40-50(I)5.512.53.4750462900
22ISGB40-50(I)A4.011.73.2544462900
23ISGB40-50(I)B3.010.62.9436402900
24ISGB40-80(I)11.012.53.4780382900
25ISGB40-80(I)A7.511.63.2270382900
26ISGB40-80(I)B7.510.8360372900
27ISGB40-80(I)C5.510.12.8752362900
28ISGB50-12.51.112.53.4712.5622900
29ISGB50-12.5A0.75113.0510602900
30ISGB50-201.512.53.4720582900
31ISGB50-20A1.1113.0516572900
32ISGB50-323.012.53.4732522900
33ISGB50-32A2.211.73.2528512900
34ISGB50-32B1.510.42.8922502900
35ISGB50-505.512.53.4750462900
36ISGB50-50A4.011.73.2544452900
37ISGB50-50B3.010.62.9438442900
38ISGB50-8011.012.53.4780382900
39ISGB50-80A7.511.63.2270382900
40ISGB50-80B7.510.8360372900
41ISGB50-80C5.5102.7852362900
42ISGB50-12.5(I)1.5256.9712.5692900
43ISGB50-12.5(I)A1.122.36.1910672900
44ISGB50-20(I)3.0256.9420682900
45ISGB50-20(I)A2.222.36.1916662900
46ISGB50-32(I)4.0256.9432632900
47ISGB50-32(I)A4.023.46.528622900
48ISGB50-32(I)B3.021.6624612900
49ISGB50-50(I)7.5256.9450582900
50ISGB50-50(I)A7.523.56.5344572900
51ISGB50-50(I)B5.521.86.0638552900
52ISGB50-80(I)15256.9480502900
53ISGB50-80(I)A11.023.46.570512900
54ISGB50-80(I)B11.021.6660502900
55ISGB50-125(I)30.0256.94125402900
56ISGB50-125(I)A22.023.76.58113402900
57ISGB50-125(I)B28.522.56.25101392900
58ISGB50-125(I)C15.020.65.7285382900
59ISGB65-12.51.5256.9412.5692900
60ISGB65-12.5A1.122.36.1910672900
61ISGB65-203.0256.9420682900
62ISGB65-20A2.222.36.1916662900
63ISGB65-324.0256.9432632900
64ISGB65-32A4.023.46.528622900
65ISGB65-32B3.021.66.024612900
66ISGB65-327.5256.9450582900
67ISGB65-50A7.523.56.5344572900
68ISGB65-50B5.521.86.0638552900
69ISGB65-8015.0256.9480502900
70ISGB65-80A11.023046.570502900
71ISGB65-80B11.021.66.060492900
72ISGB65-12530.0256.94125402900
73ISGB65-125A22.023.76.58113402900
74ISGB65-125B18.522.56.25101392900
75ISGB65-125C15.020.65.7285382900
76ISGB65-12.5(I)3.05013.912.5732900
77ISGB65-12.5(I)A2.244.712.410722900
78ISGB65-20(I)5.55013.92072.52900
79ISGB65-20(I)A4.04512.516712900
80ISGB65-30(I)7.55013.932712900
81ISGB65-30(I)A7.546.713.028702900
82ISGB65-30(I)B5.543.312.024692900
83ISGB65-50(I)15.05013.950672900
84ISGB65-50(I)A11.04713.144662900
85ISGB65-50(I)B7.543.512.138652900
86ISGB65-80(I)22.05013.980592900
87ISGB65-80(I)A18.546.713.070592900
88ISGB65-80(I)B15.043.312.060582900
89ISGB65-125(I)37.05013.9125542900
90ISGB65-125(I)A30.046.512.9113542900
91ISGB65-125(I)B30.044.512.4101532900
92ISGB65-125(I)C22.04111.485512900
93ISGB80-12.53.05013.912.5732900
94ISGB80-12.5A2.244.712.510722900
95ISGB80-205.55013.92072.52900
96ISGB80-20A4.04512.516712900
97ISGB80-327.55013.932712900
98ISGB80-32A7.546.713.028702900
99ISGB80-32B5.543.312.024692900
100ISGB80-5015.05013.950672900
101ISGB80-50A11.04713.144662900
102ISGB80-50B7.543.512.138652900
103ISGB80-8022.05013.980592900
104ISGB80-80A18.546.713.070592900
105ISGB80-80B15.043.312.060582900
106ISGB80-12537.05013.9125542900
107ISGB80-125A30.046.512.9113532900
108ISGB80-125B30.044.512.4101532900
109ISGB80-125C22.04111.485512900
110ISGB80-12.5(I)5.510027.812.5762900
111ISGB80-12.5(I)A4.08924.710742900
112ISGB80-20(I)11.010027.820762900
113ISGB80-20(I)A7.58924.716742900
114ISGB80-32(I)15.010027.832762900
115ISGB80-32(I)A11.093.52628742900
116ISGB80-32(I)B11.086.624.124722900
117ISGB80-50(I)22.010027.850742900
118ISGB80-50(I)A18.593.526.444732900
119ISGB80-50(I)B15.08724.238712900
120ISGB80-80(I)37.010027.880692900
121ISGB80-80(I)A30.093.42670682900
122ISGB80-80(I)B30.08724.260662900
123ISGB80-125(I)75.010027.8125662900
124ISGB80-125(I)A55.09526.4113662900
125ISGB80-125(I)B45.09025101652900
126ISGB80-125(I)C37.08222.885632900
127ISGB100-12.55.510027.812.5762900
128ISGB100-12.5A4.08924.710742900
129ISGB100-2011.010027.820762900
130ISGB100-20A7.58924.716742900
131ISGB100-3215.010027.832762900
132ISGB100-32A11.093.526.028742900
133ISGB100-32B11.086.624.124722900
134ISGB100-5022.010027.850742900
135ISGB100-50A18.593.526.044732900
136ISGB100-50B15.08724.238712900
137ISGB100-8037.010027.880692900
138ISGB100-80A30.093.526.070682900
139ISGB100-80B30.08724.260672900
140ISGB100-12575.010027.8125662900
141ISGB100-125A55.09426.4113662900
142ISGB100-125B45.09025.0101652900
143ISGB100-125C37.08222.885632900
144ISGB125.12.511.016044.412.5822900
145ISGB125.12.5A7.514339.710772900
146ISGB125-2015.016044.420802900
147ISGB125-20A11.014339.716772900
148ISGB125-3222.016044.432782900
149ISGB125-32A18.515041.728762900
150ISGB125-32B15.013838.324732900
151ISGB125-5037.016044.450792900
152ISGB125-50A30.015041.744742900
153ISGB125-50B22.013838.337.5722900
154ISGB125-8055.016044.480772900
155ISGB125-80A45.015041.770742900
156ISGB125-80B37.013838.360732900
157ISGB125-1259016044.7125722900
158ISGB125-125A75.515041.7110702900
159ISGB125-125B75.514339.7100692900
160ISGB125-125C55.013437.288682900
161ISGB125-32(I)30.020055.632762900
162ISGB125-32(I)A22.018751.928752900
163ISGB125-50(I)45.020055.650742900
164ISGB125-50(I)A37.018751.944732900
165ISGB125-50(I)B30.017348.137722900
166ISGB125-80(I)75.020055.680762900
167ISGB125-80(I)A55.018751.970752900
168ISGB125-80(I)B45.017348.160742900
169ISGB125-125(I)110.020055.6125732900
170ISGB125-125(I)A90.018751.9110722900
171ISGB125-125(I)B75.017348.195702900
172ISGB150-12.511.016044.412.5721450
173ISGB150-12.5A7.51403910701450
174ISGB150-2015.016044.420711450
175ISGB150-20A11.01403917701450
176ISGB150-20B7.512033.314701450
177ISGB150-3222.016044.432701450
178ISGB150-32A18.51403928711450
179ISGB150-32B15.012033.324711450
180ISGB150-5037.016044.450721450
181ISGB150-50A30.01403944701450
182ISGB150-50B22.012033.338701450
183ISGB150-8055.016044.480721450
184ISGB150-80A45.01403970701450
185ISGB150-80B37.012033.360671450
186ISGB150-8075.020055.680762900
187ISGB150-80A55.018751.970752900
188ISGB150-80B45.017348.160742900
189ISGB150-125110.020055.6125732900
190ISGB150-125A90.018751.9110722900
191ISGB150-125B75.017348.195702900
192ISGB150-125(I)15.020055.612.5781450
193ISGB150-125(I)A11.017949.710761450
194ISGB150-20(I)18.520055.620791450
195ISGB150-20(I)A15.018451.217781450
196ISGB150-21(I)B11.016746.414761450
197ISGB150-32(I)30.020055.632781450
198ISGB150-32(I)A22.018751.928771450
199ISGB150-32(I)B18.517348.124761450
200ISGB150-50(I)45.020055.650751450
201ISGB150-50(I)A37.018751.944741450
202ISGB150-50(I)B30.017448.338731450
203ISGB150-50(I)C22.016044.432711450
204ISGB150-80(I)75.020055.680691450
205ISGB150-80(I)A75.018751.970.5681450
206ISGB150-80(I)B55.017448.362661450
207ISGB150-80(I)C45.016044.454.5641450
208ISGB200-12.515.020055.612.5781450
209ISGB200-12.5A11.017949.710761450
210ISGB200-2018.520055.620791450
211ISGB200-20A15.018451.217781450
212ISGB200-20B11.016746.414761450
213ISGB200-3230.020055.632781450
214ISGB200-32A22.018751.927771450
215ISGB200-32B18.517348.124761450
216ISGB200-5045.020055.650751450
217ISGB200-50A37.018751.944741450
218ISGB200-50B30.017448.338731450
219ISGB200-50C22.016044.432711450
220ISGB200-12.5(I)22.0400111.112.5801450
221ISGB200-12.5(I)A18.535899.410781450
222ISGB200-20(I)30.0400111.120801450
223ISGB200-20(I)A22.035899.417781450
224ISGB200-20(I)B18.532289.414751450
