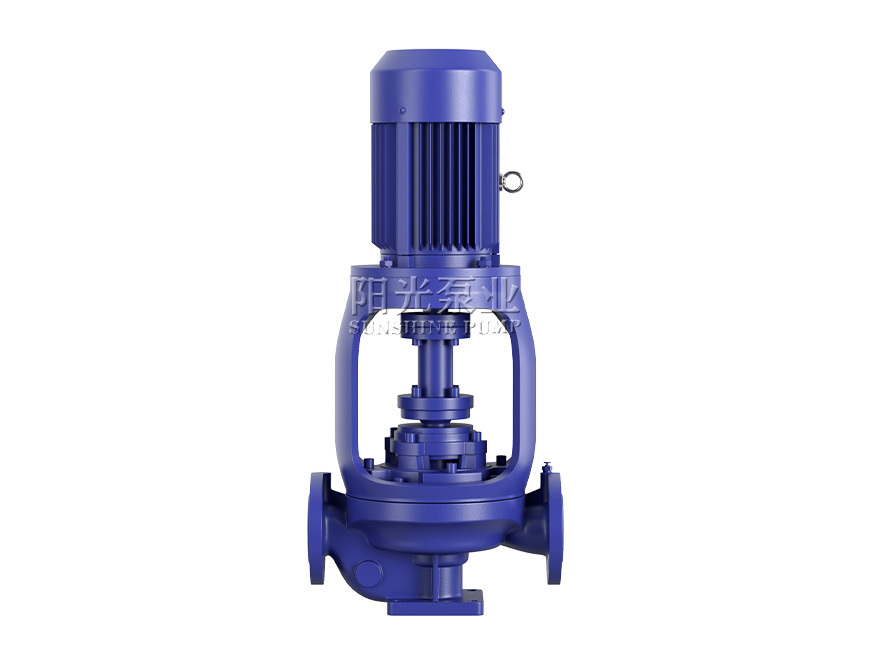

ISGB离心泵1

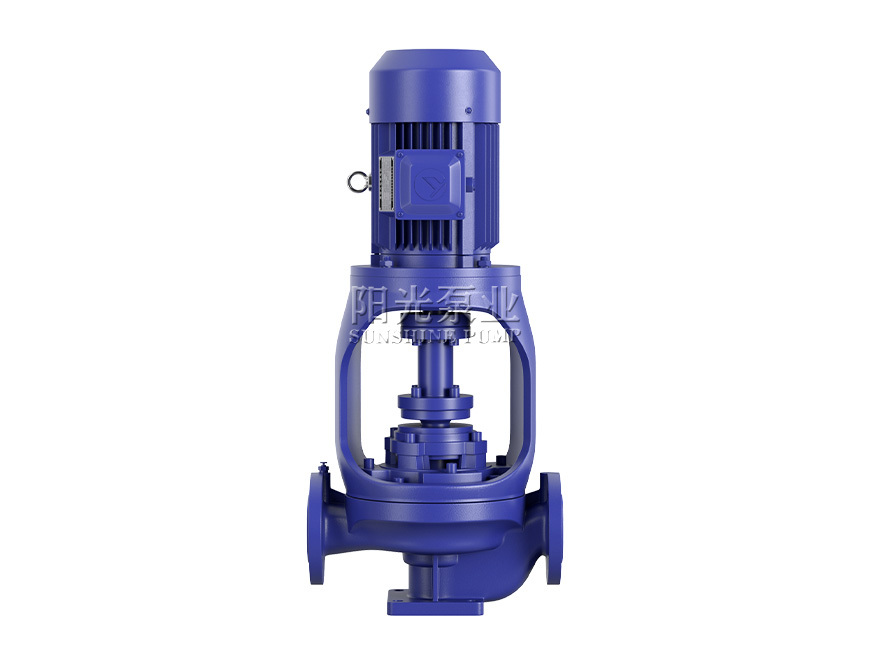

ISGB离心泵3

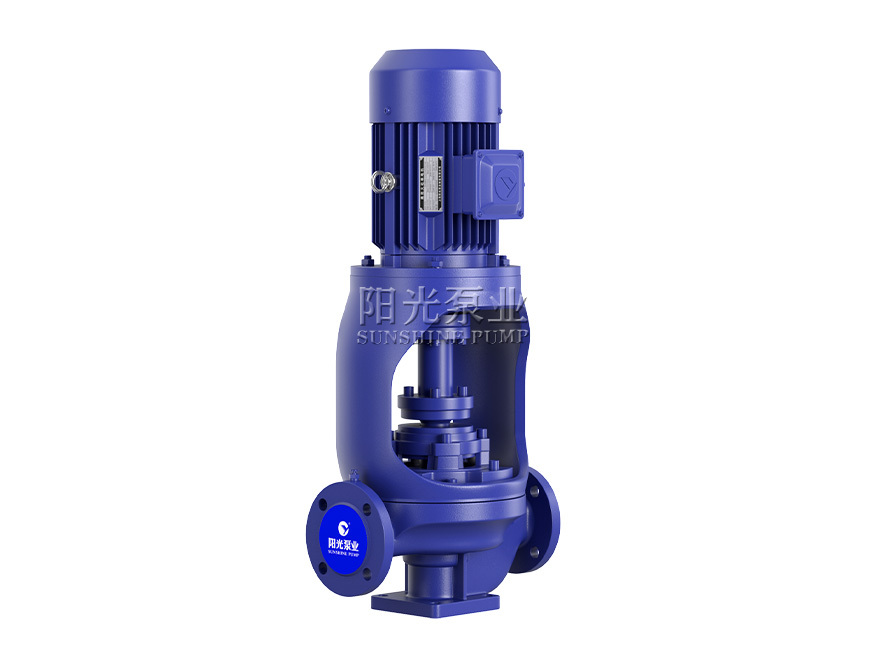

ISGB便离心泵2

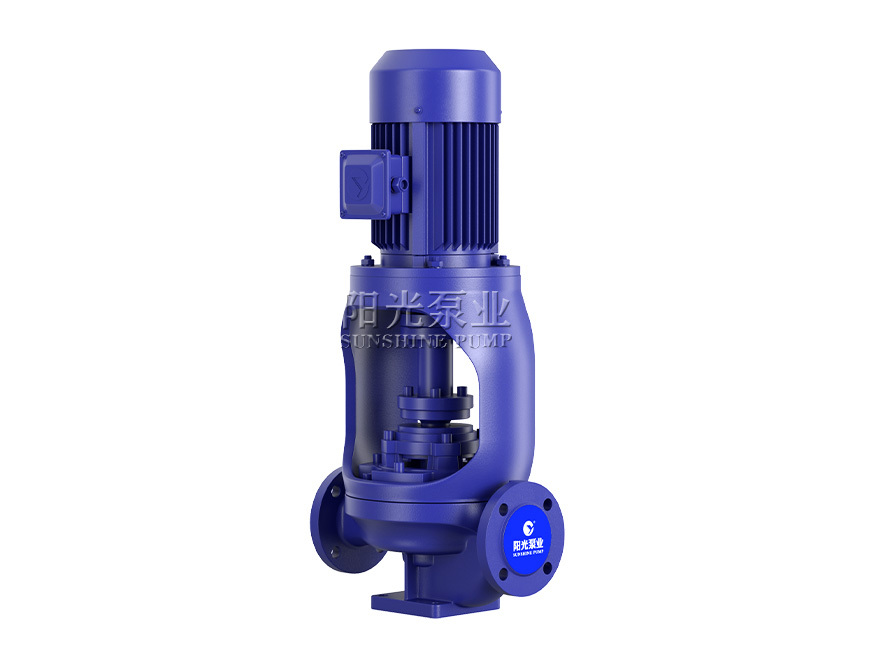

ISGB离心泵4
ISGB离心泵1
ISGB离心泵3
ISGB便离心泵2
ISGB离心泵4
ISGB便拆立式管道离心泵

变拆式安装,解决了更换机封难的问题,操作方便

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
产品简介

ISGB、ISRB型便拆立式管道离心泵是在ISG基础上开发成功的一种结构新颖、技术先进的泵类产品。该立式泵特别是在整体结构上进行大胆突破设计。该泵具有运转更平稳、使用寿命长、配套更方便、维护保养更轻松等无可代替的优点。是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规各种离心泵的产品。

产品特点

·采用独立轴承体、泵轴支撑,解决了原来立式泵靠电机轴承支撑的不足之处。

·立式结构,安装调试方便,独特设计的电机和泵体采用联接体联接,同心度高、加工精度高,占地面积大大减少,缩减了建筑投资。

·底脚稳固、结构紧凑,精美的铸造和外观处理赋予立式离心泵新的美感,使产品焕发艺术的魅力,可以和国外著名厂家立式泵媲美。

·配用低速Y系列标准通用电机,运行平稳、噪音极低、更换方便。

·轴承采用精密轴承,精度高、可靠性好、寿命长,对轴承的维护保养十分方便。

·叶轮采用可自平衡轴向力的水力模型,使得泵轴承和机械密封使用寿命大大延长,消除了原立式泵轴向力大的不足之处。

·可拆卸爪型弹性联轴器,使泵起动无振动、无噪音,旋转部件设有可靠的安全防护罩,安全性极好。

·机械密封采用不锈钢、碳化钨、氟橡胶等材料制成,耐高温、高压、运行寿命长,无渗漏,对轴无磨损,保证工作环境整洁。

·泵盖结构设计独特,即可十分轻便取出轴承座、泵盖、泵轴、叶轮等组合件,进行更换机械密封和叶轮,维修方便快捷。

适用范围

输送介质为清水或物理化学性质类似清水的其它液体。

性能参数

序号
型号流量    扬程
   (m)
   效率
   (%)
转速
(r/min)
   功率
   (kW)
(m³/h)(L/s)
1ISGB40-12.56.31.7512.55429000.55
2ISGB40-12.5A5.61.5615229000.37
3ISGB40-206.31.75204629001.1
4ISGB40-20A5.61.56164529000.75
5ISGB40-326.31.75324029002.2
6ISGB40-32A5.91.64283929001.5
7ISGB40-32B5.51.53243829001.1
8ISGB40-506.31.75503329004.0
9ISGB40-50A5.91.64443129003.0
10ISGB40-50B5.31.47362929002.2
11ISGB40-806.31.75802829007.5
12ISGB40-80A5.91.64702829005.5
13ISGB40-80B5.51.53602729005.5
14ISGB40-12.5(I)12.53.4712.56229001.1
15ISGB40-12.5(I)A113.05106029000.75
16ISGB40-20(I)12.53.47205829001.5
17ISGB40-20(I)A113.05165729001.1
18ISGB40-32(I)12.53.47325229003.0
19ISGB40-32(I)A11.73.25285129002.2
20ISGB40-32(I)B10.42.89245029001.5
21ISGB40-50(I)12.53.47504629005.5
22ISGB40-50(I)A11.73.25444629004.0
23ISGB40-50(I)B10.62.94364029003.0
24ISGB40-80(I)12.53.478038290011.0
25ISGB40-80(I)A11.63.22703829007.5
26ISGB40-80(I)B10.83.0  603729007.5
27ISGB40-80(I)C10.12.87523629005.5
28ISGB50-12.512.53.4712.56229001.1
29ISGB50-12.5A113.05106029000.75
30ISGB50-2012.53.47205829001.5
31ISGB50-20A113.05165729001.1
32ISGB50-3212.53.47325229003.0
33ISGB50-32A11.73.25285129002.2
34ISGB50-32B10.42.89225029001.5
35ISGB50-5012.53.47504629005.5
36ISGB50-50A11.73.25444529004.0
37ISGB50-50B10.62.94384429003.0
38ISGB50-8012.53.478038290011.0
39ISGB50-80A11.63.22703829007.5
40ISGB50-80B10.83.0  603729007.5
41ISGB50-80C10.0  2.78523629005.5
42ISGB50-12.5(I)256.9712.56929001.5
43ISGB50-12.5(I)A22.36.19106729001.1
44ISGB50-20(I)256.94206829003.0
45ISGB50-20(I)A22.36.19166629002.2
46ISGB50-32(I)256.94326329004.0
47ISGB50-32(I)A23.46.5286229004.0
48ISGB50-32(I)B21.66.0  246129003.0
49ISGB50-50(I)256.94505829007.5
50ISGB50-50(I)A23.56.53445729007.5
51ISGB50-50(I)B21.86.06385529005.5
52ISGB50-80(I)256.948050290015.0
53ISGB50-80(I)A23.46.57051290011.0
54ISGB50-80(I)B21.66.0  6050290011.0
55ISGB50-125(I)256.9412540290030.0
56ISGB50-125(I)A23.76.5811340290022.0
57ISGB50-125(I)B22.56.2510139290018.5
58ISGB50-125(I)C20.65.728538290015.0
59ISGB65-12.5256.9412.56929001.5
60ISGB65-12.5A22.36.19106729001.1
61ISGB65-20256.94206829003.0
62ISGB65-20A22.36.19166629002.2
63ISGB65-32256.94326329004.0
64ISGB65-32A23.46.5286229004.0
65ISGB65-32B21.66.0  246129003.0
66ISGB65-50256.94505829007.5
67ISGB65-50A23.56.53445729007.5
68ISGB65-50B21.86.06385529005.5
69ISGB65-80256.948050290015.0
70ISGB65-80A23.46.57050290011.0
71ISGB65-80B21.66.0  6049290011.0
72ISGB65-125256.9412540290030.0
73ISGB65-125A23.76.5811340290022.0
74ISGB65-125B22.56.2510139290018.5
75ISGB65-125C20.65.728538290015.0
76ISGB65-12.5(I)5013.912.57329003.0
77ISGB65-12.5(I)A44.712.4107229002.2
78ISGB65-20(I)5013.92072.529005.5
79ISGB65-20(I)A4512.5167129004.0
80ISGB65-32(I)5013.9327129007.5
81ISGB65-32(I)A46.713.0  287029007.5
82ISGB65-32(I)B43.312.0  246929005.5
83ISGB65-50(I)5013.95067290015.0
84ISGB65-50(I)A4713.14466290011.0
85ISGB65-50(I)B43.512.1386529007.5
86ISGB65-80(I)5013.98059290022.0
87ISGB65-80(I)A46.713.0  7059290018.5
88ISGB65-80(I)B43.312.0  6058290015.0
89ISGB65-125(I)5013.912554290037.0
90ISGB65-125(I)A46.512.911354290030.0
91ISGB65-125(I)B44.512.410153290030.0
92ISGB65-125(I)C4111.48551290022.0
93ISGB80-12.55013.912.57329003.0
94ISGB80-12.5A44.712.5107229002.2
95ISGB80-205013.92072.529005.5
96ISGB80-20A4512.5167129004.0
97ISGB80-325013.9327129007.5
98ISGB80-32A46.713.0  287029007.5
99ISGB80-32B43.312.0  246929005.5
100ISGB80-505013.95067290015.0
101ISGB80-50A4713.14466290011.0
102ISGB80-50B43.512.1386529007.5
103ISGB80-805013.98059290022.0
104ISGB80-80A46.713.0  7059290018.5
105ISGB80-80B43.312.0  6058290015.0
106ISGB80-1255013.912554290037.0
107ISGB80-125A46.512.911353290030.0
108ISGB80-125B44.512.410153290030.0
109ISGB80-125C4111.48551290022.0
110ISGB80-12.5(I)10027.812.57629005.5
111ISGB80-12.5(I)A8924.7107429004.0
112ISGB80-20(I)10027.82076290011.0
113ISGB80-20(I)A8924.7167429007.5
114ISGB80-32(I)10027.83276290015.0
115ISGB80-32(I)A93.526.0  2874290011.0
116ISGB80-32(I)B86.624.12472290011.0
117ISGB80-50(I)10027.85074290022.0
118ISGB80-50(I)A93.526.44473290018.5
119ISGB80-50(I)B8724.23871290015.0
120ISGB80-80(I)10027.88069290037.0
121ISGB80-80(I)A93.526.0  7068290030.0
122ISGB80-80(I)B8724.26066290030.0
123ISGB80-125(I)10027.812566290075.0
124ISGB80-125(I)A9526.411366290055.0
125ISGB80-125(I)B902510165290045.0
126ISGB80-125(I)C8222.88563290037.0
127ISGB100-12.510027.812.57629005.5
128ISGB100-12.5A8924.7107429004.0
129ISGB100-2010027.82076290011.0
130ISGB100-20A8924.7167429007.5
131ISGB100-3210027.83276290015.0
132ISGB100-32A93.526.0  2874290011.0
133ISGB100-32B86.624.12472290011.0
134ISGB100-5010027.85074290022.0
135ISGB100-50A93.526.0  4473290018.5
136ISGB100-50B8724.23871290015.0
137ISGB100-8010027.88069290037.0
138ISGB100-80A93.526.0  7068290030.0
139ISGB100-80B8724.26067290030.0
140ISGB100-12510027.812566290075.0
141ISGB100-125A9526.411366290055.0
142ISGB100-125B9025.0  10165290045.0
143ISGB100-125C8222.88563290037.0
144ISGB125-12.516044.412.582290011.0
145ISGB125-12.5A14339.7107729007.5
146ISGB125-2016044.42080290015.0
147ISGB125-20A14339.71677290011.0
148ISGB125-3216044.43278290022.0
149ISGB125-32A15041.72876290018.5
150ISGB125-32B13838.32473290015.0
151ISGB125-5016044.45079290037.0
152ISGB125-50A15041.74474290030.0
153ISGB125-50B13838.337.572290022.0
154ISGB125-8016044.48077290055.0
155ISGB125-80A15041.77074290045.0
156ISGB125-80B13838.36073290037.0
157ISGB125-12516044.712572290090.0
158ISGB125-125A15041.711070290075.0
159ISGB125-125B14339.710069290075.0
160ISGB125-125C13437.28868290055.0
161ISGB125-32(I)20055.63276290030.0
162ISGB125-32(I)A18751.92875290022.0
163ISGB125-50(I)20055.65074290045.0
164ISGB125-50(I)A18751.94473290037.0
165ISGB125-50(I)B17348.13772290030.0
166ISGB125-80(I)20055.68076290075.0
167ISGB125-80(I)A18751.97075290055.0
168ISGB125-80(I)B17348.16074290045.0
169ISGB125-125(I)20055.6125732900110.0
170ISGB125-125(I)A18751.911072290090.0
171ISGB125-125(I)B17348.195700290075.0
172ISGB150-12.516044.412.572290011.0
173ISGB150-12.5A14039107029007.5
174ISGB150-2016044.42071290015.0
175ISGB150-20A140391770290011.0
176ISGB150-20B12033.3147029007.5
177ISGB150-3216044.43270290022.0
178ISGB150-32A140392871290018.5
179ISGB150-32B12033.32471290015.0
180ISGB150-5016044.45072290037.0
181ISGB150-50A140394470290020.0
182ISGB150-50B12033.33870290022.0
183ISGB150-8016044.48072290055.0
184ISGB150-80A140397070290045.0
185ISGB150-80B12033.36067290037.0
186ISGB150-8020055.68076290075.0
187ISGB150-80A18751.97075290055.0
188ISGB150-80B17348.16074290045.0
189ISGB150-12520055.6125732900110.0
190ISGB130-125A18751.911072290090.0
191ISGB150-125B17348.19570290075.0
192ISGB150-12.5(I)20055.612.578145015.0
193ISGB150-12.5(I)A17949.71076145011.0
194ISGB150-20(I)20055.62079145018.5
195ISGB150-20(I)A18451.21778145015.0
196ISGB150-20(I)B16746.41476145011.0
197ISGB150-32(I)20055.63278145030.0
198ISGB150-32(I)A18751.92877145022.0
199ISGB150-32(I)B17348.12476145018.5
200ISGB150-50(I)20055.65075145045.0
201ISGB150-50(I)A18751.94474145037.0
202ISGB150-50(I)B17448.33873145030.0
203ISGB150-50(I)C16044.43271145022.0
204ISGB150-80(I)20055.68069145075.0
205ISGB150-80(I)A18751.970.568145075.0
206ISGB150-80(I)B17448.36266145055.0
207ISGB150-80(I)C16044.454.564145045.0
208ISGB200-12.520055.612.578145015.0
209ISGB200-12.5A17949.71076145011.0
210ISGB200-2020055.62079145018.5
211ISGB200-20A18451.21778145015.0
212ISGB200-20B16746.41476145011.0
213ISGB200-3220055.63278145030.0
214ISGB200-32A18751.92777145022.0
215ISGB200-32B17348.12476145018.5
216ISGB200-5020055.65075145045.0
217ISGB200-50A18751.94474145037.0
218ISGB200-50B17448.33873145030.0
219ISGB200-50C16044.43271145022.0
220ISGB200-12.5(I)400111.112.580145022.0
221ISGB200-12.5(I)A35899.41078145018.5
222ISGB200-20(I)400111.12080145030.0
223ISGB200-20(I)A35899.41778145022.0
224ISGB200-20(I)B32289.41475145018.5
225ISGB200-32(I)400111.13280145055.0
226ISGB200-32(I)A374103.92879145045.0
227ISGB200-32(I)B34696.12478145037.0
228ISGB200-20(I)400111.15081145075.0
229ISGB200-20(I)A352103.94480145075.0
230ISGB200-20(I)B34696.13878145055.0
231ISGB200-20(I)C32088.93276145045.0
232ISGB200-80(I)400111.180801450132.0
233ISGB200-80(I)A374103.970791450110.0
234ISGB200-80(I)B34696.16078145090.0
235ISGB200-40(I)C32088.95676145075.0
236ISGB200-125(I)400111.1125791450200.0
237ISGB200-125(I)A35297.8112781450200.0
238ISGB200-125(I)B32088.996771450132.0
239ISGB250-12.5650152.812.582145030.0
240ISGB250-12.5A506140.610.880145022.0
241ISGB250-20550152.82082145045.0
242ISGB250-20A506140.61780145037.0
243ISGB250-32550152.83280145075.0
244ISGB250-32A506140.62878145055.0
245ISGB250-32B466129.32576145045.0
246ISGB250-50550152.850761450110.0
247ISGB250-50A506140.64474145090.0
248ISGB250-50B466129.339.572145075.0
249ISGB250-50C4281193569145075.0
250ISGB250-70550152.870761450160.0
251ISGB250-70A506140.660751450132.0
252ISGB250-70B466129.35074145090.0
253ISGB250-70C4281194472145075.0
254ISGB250-80550152.880771450200.0
255ISGB250-80A506140.671751450160.0
256ISGB250-80B466129.363.5731450132.0
257ISGB250-80C42811955711450110.0
258ISGB300-12.572020012.583145037.0
259ISGB300-12.5A6621841182145030.0
260ISGB300-187202001881145055.0
261ISGB300-18A607182.51579145045.0
262ISGB300-18B60016712.577145037.0
263ISGB300-207202002083145055.0
264ISGB300-20A66218417.581145045.0
265ISGB300-287202002881145075.0
266ISGB300-28A6661852480145075.0
267ISGB300-28B623173.12179145055.0
268ISGB300-327202003282.5145090.0
269ISGB300-32A6621842880145075.0
270ISGB300-32B609169.323.578145055.0
271ISGB300-4472020044841450132.0
272ISGB300-44A66618538801450110.0
273ISGB300-44B614170.63278145090.0
274ISGB300-5072020050801450132.0
275ISGB300-50A66218444791450110.0
276ISGB300-50B609169.33877145090.0
277ISGB300-50C561155.73374145075.0
278ISGB300-6572020065811450200.0
279ISGB300-65A66218455801450160.0
280ISGB300-65B609169.345791450110.0
281ISGB300-65C561155.73878145090.0
282ISGB300-8072020080801450250.0
283ISGB300-80A66218470.5791450200.0
284ISGB300-80B609169.362771450160.0
285ISGB300-80C561155.754.5751450132.0
286ISGB350-12.5108030012.58397055.0
287ISGB350-12.5A995276.4108197045.0
288ISGB350-201080300208297090.0
289ISGB350-20A995376.4178097075.0
290ISGB350-20B931258.6157897055.0
291ISGB350-32108030032831450132.0
292ISGB350-32A995276.427811450110.0
293ISGB350-32B931258.62479145090.0
294ISGB350-40108030040821450160.0
295ISGB350-40A965268.132801450132.0
296ISGB350-40B90025028.2781450110.0
297ISGB350-50108030050831450200.0
298ISGB350-50A995276.444811450160.0
299ISGB350-50B931258.638791450132.0
300ISGB350-60108030060821450250.0
301ISGB350-60A995376.454801450200.0
302ISGB350-60B931258.646.9781450160.0
303ISGB350-12.5(I)1200333.312.58097055.0
304ISGB350-12.5(I)A108030010.58097045.0
305ISGB350-200(I)1200333.3208097090.0
306ISGB350-200(I)A1080300177897075.0
307ISGB350-32(I)1200333.332781450160.0
308ISGB350-32(I)A108030028761450132.0
309ISGB350-32(I)B98527325751450110.0
310ISGB350-500(I)1200333.350741450250.0
311ISGB350-500(I)A108030044721450200.0
312ISGB350-500(I)B98527338.5701450160.0


资料下载
PDF
下载产品PDF图册资料 PDF下载

文件大小:

高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

点击立刻咨询

正在呼叫 您将接收到 021-61515991 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
关闭
获取产品图册资料

通过手机号验证后将自动下载

手机号码格式不正确,请重新输入
获取验证码

短信验证码已发送,可能会有延后请耐心等待

关闭
高级工程师
专业为您选型报价

免费电话,无需话费,输入立即沟通

正在呼叫 您将接收到 021开头的 回拨电话 请稍后!

上海阳光泵业提示您:

请输入正确的手机号码!
确定
工程师一对一服务

点击立刻咨询

电话 咨询
