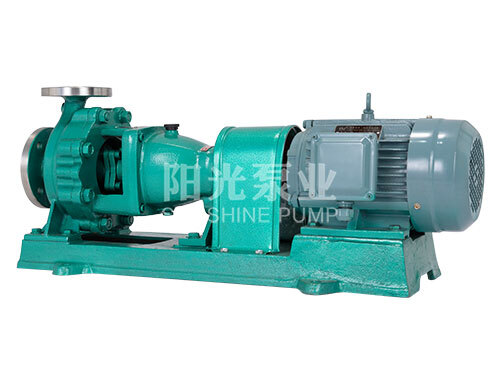

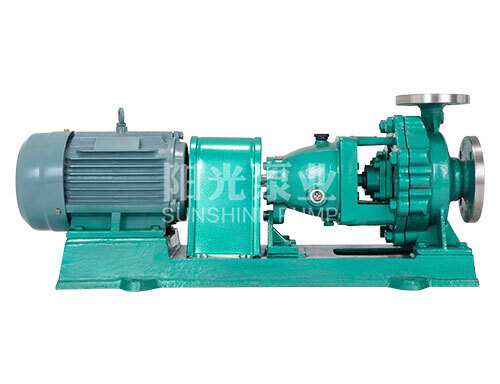

IH型不锈钢化工离心泵

质量稳定:全程质量监控,细致入微,全方位检测,保证产品质量!
交货快捷:先进生产流水线,备货充足,常规产品全部仓库现货供应!
专业定制:高级工程师专业选型报价,各种材质非标产品皆可洽谈定做!

销售热线 021-66528888
免费电话 在线咨询
产品简介

产品介绍:

上海阳光泵业IH型化工泵是单级单吸悬臂式离心泵,其标记额定性能点和尺寸等效采用国际标准ISO2858-1975(E),是一种用以取代F型耐腐蚀泵更新换代的节能产品,泵体材质可选不锈钢304、不锈钢316L和双相钢。


结构特点:

IH型系列泵有29个基本型,其中22个双速(2900、1450r/min)经过A、B两种型式的叶轮直径切割变型后,达112个规格。其主要由泵体、叶传输线、密封环、叶轮螺母、泵盖、密封部件、中间支架、轴、悬架部件等组成。通过加长联轴器由电动机直接驱动,从电动机端看,按顺时针方向旋转。泵盖通过止口固定在中间支架上,然后通过泵体与中间支架止口的联接把泵盖夹紧在中间,泵体是轴向吸入,径向排出,脚支承式,可直接固定在底座上。悬架部件通过止口固定固定在中间支架上,并用悬架支架支撑在底座上。为拆卸方便,设计了加长联轴器,检修时可以不拆卸进出口联接管路,泵体和电动机。只需拆下联轴器的中间联接件,即可退出转子部件进行检修。这是国际上通用的一种结构形式。


轴封型式:

泵的密封型式采用填料密封或机械密封,由用户根据需要适用,同时根据需要允许采用适合于ISO3069规定的密封空腔尺寸和其他结构的轴封型式,如带波纹管的机械密封和付叶轮密封等等。

 ·  填料密封:泵盖内设有填料函,采用软填料密封,填料函内可通入有一定压力的水,供密封冷却,润滑、清洗用。

 ·  机械密封:单端面机械密封和双端面机械密封两种型式,密封腔内通入一定压力的水,冲洗磨擦两端面,同时起冷却作用。


产品用途:

 ·  输送温度在-20℃~105℃的各种腐蚀的或不允许污染的类似于水的介质。

 ·  适用于化工、石油、冶金、电站、食品、制药、环保、废水处理和合成纤维等行业。

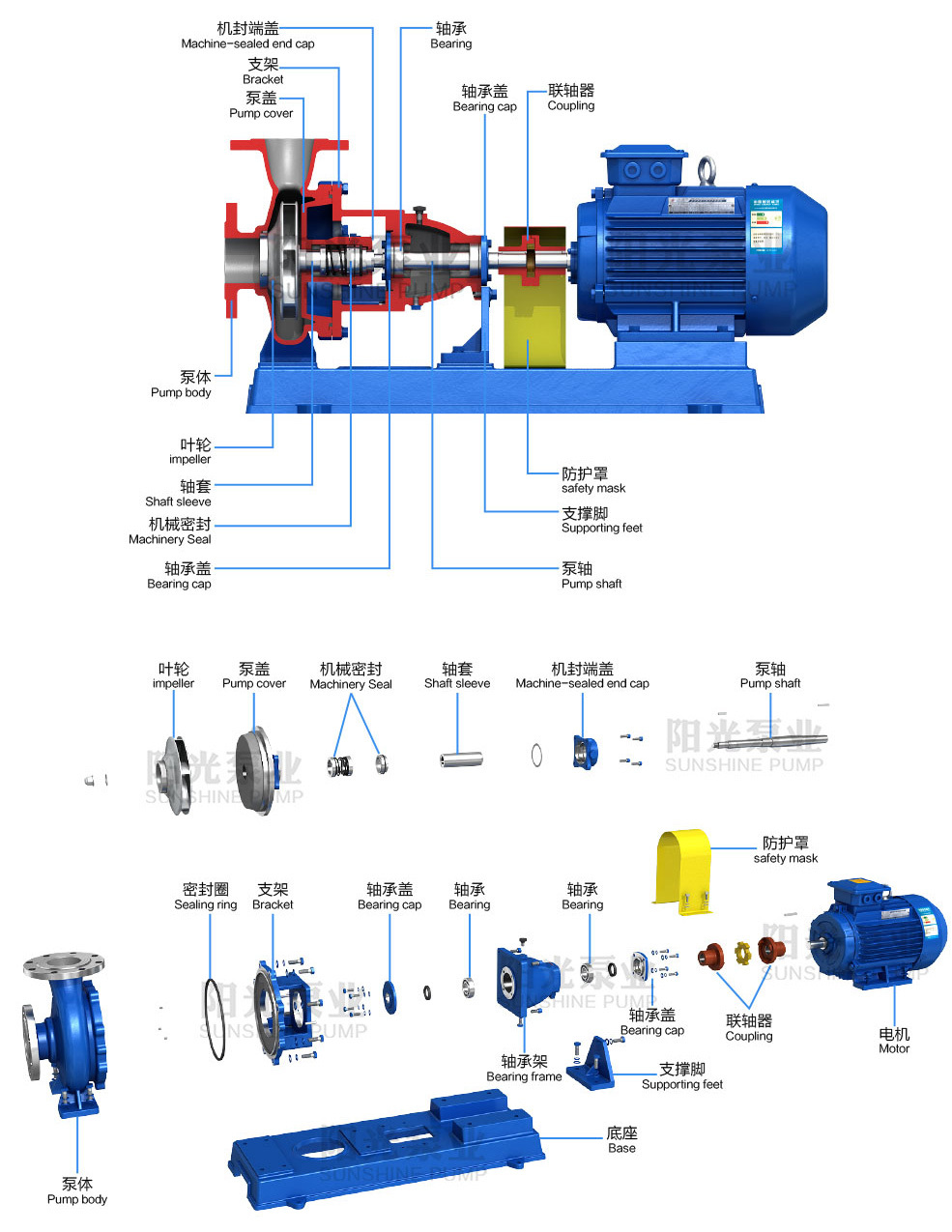

结构图纸:

性能参数
型号转速 n流量 Q扬程 H效率 η功率 P必需汽蚀余量
(r/min)(m3/h)(L/S)(m)(%)轴功率电机功率(NPSH)r
(KW)(m)
IH50-32-125290012.53.4720511.332.22
14506.31.755450.190.552
IH50-32-125A290011.33.1416.4501.011.52
14505.71.584.1430.150.552
IH50-32-160290012.53.4732462.3732
14506.31.758400.340.552
IH50-32-160A290011.33.1426.4441.8532
14505.71.586.637.10.280.552
IH50-32-200290012.53.4750394.365.52
14506.31.7512.5330.651.12
IH50-32-200A290011.33.1441383.2442
14505.71.5810.3310.520.752
IH50-32-250290012.53.4780338.25112
14506.31.7520271.272.22
IH50-32-250A290011.73.2570326.97112
14505.91.6417.5251.251.52
IH50-32-250B2900113.0662306.197.52
IH65-50-1252900256.9420622.232
145012.53.475550.310.552
IH65-50-125A290022.76.3116.5611.672.22
145011.33.144.1540.230.552
IH65-50-1602900256.9432573.825.52
145012.53.478510.530.752
IH65-50-160A290022.76.3126.5562.9342
145011.33.146.649.60.410.552
IH65-40-2002900256.9450526.55112
145012.53.4712.5460.931.52
IH65-40-200A290022.76.3141505.077.52
145011.33.1410.3440.721.12
IH65-40-2502900256.94804611.84152
145012.53.4720391.7532
IH65-40-250A290023.46.574.84510.6152
145011.73.2517.537.91.472.22
IH65-40-250B2900226.1161.8448.42112
IH65-40-3152900256.941253921.8302
145012.53.4732333.35.52
IH65-40-315A290023.46.5109.53818.36302
145011.73.2528332.7142
IH65-40-315B2900226.1196.53715.63222
IH80-65-12529005013.8920693.955.53
1450256.945640.530.752.5
IH80-65-125A290045.312.5816.5673.0443
145022.76.314.1620.410.552.5
IH80-65-16029005013.8932676.51112.3
1450256.948620.881.52.3
IH80-65-160A290045.312.5826.4655.027.52.3
145022.76.316.6600.681.12.3
IH80-50-20029005013.89506310.81152.5
1450256.9412.5571.492.22
IH80-50-200A290045.312.5841618.29112.5
145022.76.3110.356.11.142.22
IH80-50-25029005013.89805320.57302.5
1450256.9420502.725.52
IH80-50-250A290045.312.5865.75215.61222.5
145022.76.3116.4492.0732
IH80-50-31529005013.891255034.1452.5
1450256.9432484.547.52.5
IH80-50-315A290045.312.58102.64826.4372.5
145022.76.3125.7463.465.52.5
IH100-80-125290010027.7820737.47114.2
14505013.895690.991.53.4
IH100-80-125A290091.825.516.8715.927.54.2
145045.912.754.2670.781.13.4
IH100-80-160290010027.78327311.9154.3
14505013.898681.582.23.4
IH100-80-160A29009125.2826.5719.25154.3
145045.512.646.6671.221.53.4
IH100-65-200290010027.78507218.92223.9
14505013.8912.5682.532.5
IH100-65-200A29009125.2841.57014.718.53.9
145045.512.6410.3661.9332.5
IH100-65-250290010027.78806832.06373.6
14505013.8920634.335.52.5
IH100-65-250A290093.525.97706527.44373.6
145045.512.6417.4613.535.52.5
IH100-65-250B290087.824.3961.76423.1303.6
IH100-65-315290010027.781256254.94753.2
14505013.8932587.52112
IH100-65-315A290093.525.971096145.53753.2
145046.512.9228566.33112
IH100-65-315B29008824.44976038.77553.2
IH125-100-200290020055.56507735.39455
145010027.7812.5734.667.52.9
IH125-100-200A290018250.5641.47527.38375
14509125.2810.3713.65.52.9
IH125-100-250290020055.56807558.13754.5
145010027.7820727.56112.3
IH125-100-250A2900186.551.8169.57348.35754.5
14509325.8317.4706.29112.3
IH125-100-250B2900175.548.7561.57141.42554.5
IH125-100-315290020055.61257294.621104.5
145010027.8326513.42222.5
IH125-100-315A2900186.551.81108.77177.81904.5
14509325.8327.26410.77152.5
IH125-10-400145010027.78505524.77302.5
IH125-100-400A14509325.8343.25420.27302.5
IH150-125-250145020055.56207714.1618.52.8
IH150-125-250A145018250.5616.57510.91152.8
IH150-125-315145020055.6327523.25302.8
IH150-125-315A145018250.5625.57317.32222.8
IH150-125-315B145016545.83227213.7418.52.8
IH150-125-400145020055.56507038.93552.5
IH150-125-400A145018250.56416829.94372.5
IH150-125-400B145016545.83346722.82302.5
IH200-150-2501450400111.11207927.59372.8
IH200-150-250A1450363100.8316.57920.66302.8
IH200-150-3151450400111.11327944.15553.5
IH200-150-315A1450363100.8425.57732.76453.5
IH200-150-315B145032991.3921.67625.48373.5
IH200-150-4001450400111.11507869.87903.5
IH200-150-400A1450363100.83417653.36753.5
IH200-150-400B145032991.3933.87540.4553.5
